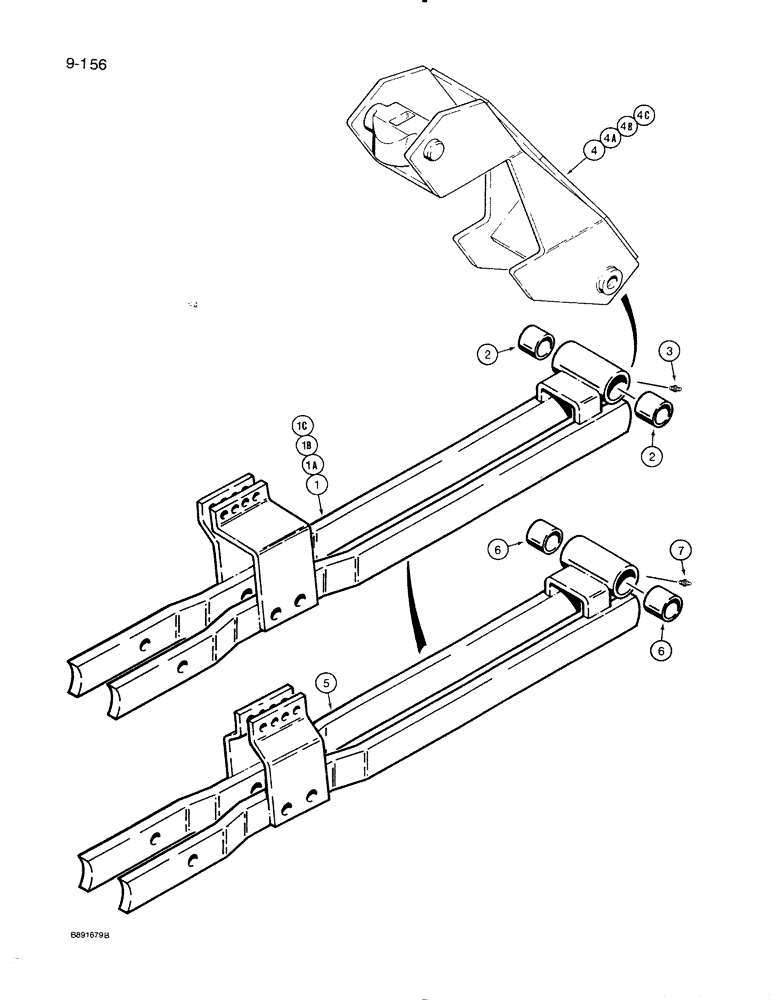

Запчасти Case IH 8500 (9-156) - FURROW OPENER, OFFSET AND SPECIAL DRAWBARS (09) - CHASSIS/ATTACHMENTS

1

1344566C1

BAR

DRAWBAR ASSEMBLY - furrow opener, left-hand offset, used with 7 inch row spacing

1шт.

1a

1344567C1

BAR

DRAWBAR ASSEMBLY - furrow opener, right-hand offset, used with 7 inch row spacing, not shown

1шт.

1b

1344568C1

BAR

DRAWBAR ASSEMBLY - furrow opener, left-hand offset, used with 10 inch row spacing, not shown

2шт.

1c

1344569C1

BAR

DRAWBAR ASSEMBLY - furrow opener, right-hand offset, used with 10 inch row spacing, not shown

2шт.

2

88901C1

BUSHING,22.45mm ID x 28.35mm OD x 25.4mm L

- pivot, drawbar, used with items 1 through 1C

2шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Used with items 1 through 1C 1/4"-28 x .56" lg, Self-Tap

1шт.

4

1980765C1

BRACKET

- mounting, drawbar, left-hand offset

1шт.

used with 7 inch row spacing

1шт.

4a

1980766C1

BRACKET

- mounting, drawbar, right-hand offset

1шт.

used with 7 inch row spacing, not shown

1шт.

4b

1980767C1

BRACKET

- mounting, drawbar, left-hand offset

1шт.

used with 10 inch row spacing, not shown

2шт.

4c

1980768C1

BRACKET

- mounting, drawbar, right-hand offset

1шт.

used with 10 inch row spacing, not shown

2шт.

5

118778A1

DRAWBAR

ASSEMBLY - furrow opener, special, used with 7 inch row spacing unit when tie rod type cylinders are used 45 FOOT WIDE DRILL

1шт.

6

88901C1

BUSHING,22.45mm ID x 28.35mm OD x 25.4mm L

- pivot, drawbar 45 FOOT WIDE DRILL

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , 45 foot wide drill 1/4"-28 x .56" lg, Self-Tap

1шт.
