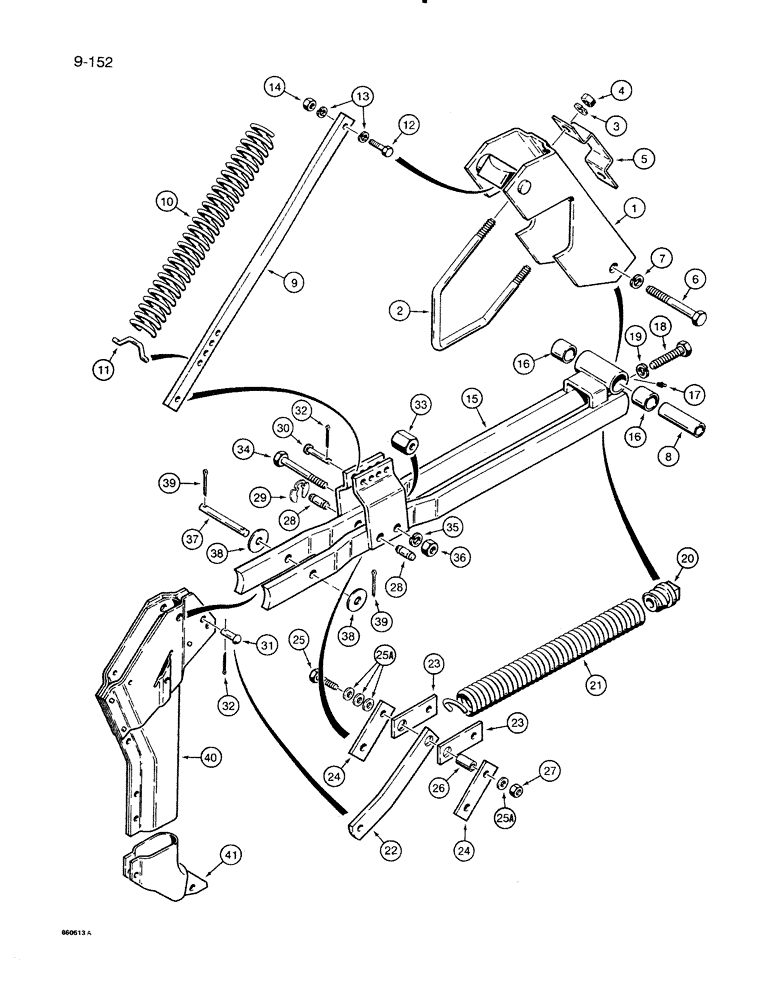

Запчасти Case IH 8500 (9-152) - FURROW OPENER, WITH SPRING TRIP POINT, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337319C1

BRACKET

- mounting, drawbar, straight, see page 9-157, items 4 through 4C, for brackets used with offset drawbars

1шт.

2

1337386C1

BOLT

U-BOLT -, Serial Range: bracket-frame

1шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

2шт.

5

1337426C1

CLIP

RETAINER -, Serial Range: hose-opener

1шт.

6

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

- hex head, 5/8" - 11 NC x 4-1/4"

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

88909C1

TUBE,16.129 mm ID x 22.352 mm OD x 76.2 mm L

SPACER - bracket

1шт.

9

1337320C1

ROD

BAR - opener float spring

1шт.

10

1337387C1

SPRING

- opener float

1шт.

11

1337321C1

CLIP

RETAINER - float spring

1шт.

12

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1"

1шт.

13

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

120377

NUT,3/8" - 16, Gr 5

1шт.

89090C91

BAR

DRAWBAR ASSEMBLY - opener, straight, see page 9-157, items 1 through 1C, for offset drawbars

1шт.

15

NSS

NOT SOLD SEPARAT

DRAWBAR - opener

1шт.

16

88901C1

BUSHING,22.45mm ID x 28.35mm OD x 25.4mm L

- pivot, drawbar

2шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

18

89096C1

BOLT

- special, spring retainer, full thread

1шт.

19

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

M1425

PLUG

RETAINER - spring

1шт.

21

89172C1

SPRING

- trip

1шт.

22

1279373C1

LINK

- trip

1шт.

23

89092C1

BAR

-, Serial Range: spring-link

2шт.

24

1985924C1

BAR

-, Serial Range: link-drawbar

2шт.

25

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

25a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

26

1995789C1

SPACER

- bolt, special

1шт.

27

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

28

89173C1

PIN,12.7mm OD x 32mm L

- retainer, bar to draw, Serial Range: bar-drawbar

2шт.

29

89205C1

RING

- retaining, Serial Range: pin-drawbar

4шт.

30

28234R1

HEADED PIN,3/8" x 1 1/2"

PIN - clevis, float spring bar to drawbar, 3/8" x 1-1/2"

1шт.

31

4837S

HEADED PIN,3/8" x 1"

PIN - clevis, trip link to opener, 3/8" x 1"

1шт.

32

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

33

818078C3

SPACER

- drawbar

1шт.

34

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT - hex head, 1/2" - 13 NC x 3-1/2"

1шт.

35

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

36

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

37

1279374C1

PIN

- furrow, Serial Range: opener-drawbar

1шт.

38

21782R1

WASHER

- flat, 5/8"

2шт.

39

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

40

89185C1

OPENER

- furrow

1шт.

41

REF

INSTRUCTION

ADAPTER - point to opener, see page 9-165 for points

1шт.

and deflectors

1шт.
