Запчасти Case IH 8500 (9-140) - MASTER CYLINDER LIFT ARM AND CART LINK, USED WITH FRAME SECTION NUMBER THREE, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

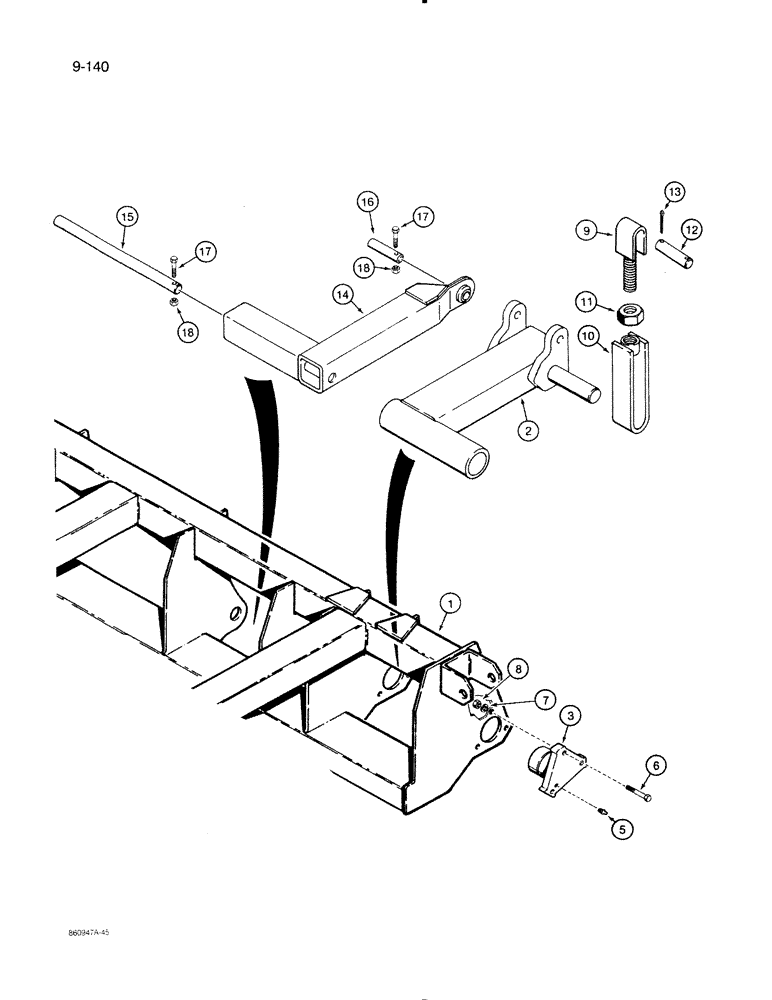

Схема запчастей Case IH 8500 - (9-140) - MASTER CYLINDER LIFT ARM AND CART LINK, USED WITH FRAME SECTION NUMBER THREE, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
17
3
17
2
14
10
7
9
16
8
11
5
15
6
18
12
1
18
13

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FRAME - drill, section number 3, see page 9-91

1шт.

for correct frame

1шт.

2

1337301C1

ARM

- lift, master cylinder

1шт.

3

1337302C1

BUSHING

TUBE AND BUSHING -, Serial Range: arm-frame

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

6

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8" - 11 NC x 2"

6шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

8

280374

NUT,Hex, 5/8" - 11, Gr 5

-hex, 5/8" - 11 NC

6шт.

9

1337303C2

LINK

SLING - lift arm, upper

1шт.

10

1337304C1

LINK

SLING - lift arm, lower

1шт.

11

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

- hex jam, 1-1/2" - 6 NC

1шт.

12

1337420C1

PIN

- upper sling to cart frame

1шт.

13

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

14

1337300C1

LINK

- cart to drill frame

1шт.

15

1337383C1

SHAFT

- cart link, at drill frame

1шт.

16

1337395C1

PIN

- cart link, at cart frame

1шт.

17

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex head, 5/16" - 18 NC x 2-1/4"

2шт.

18

9413952

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

Выбрано товаров: 18
