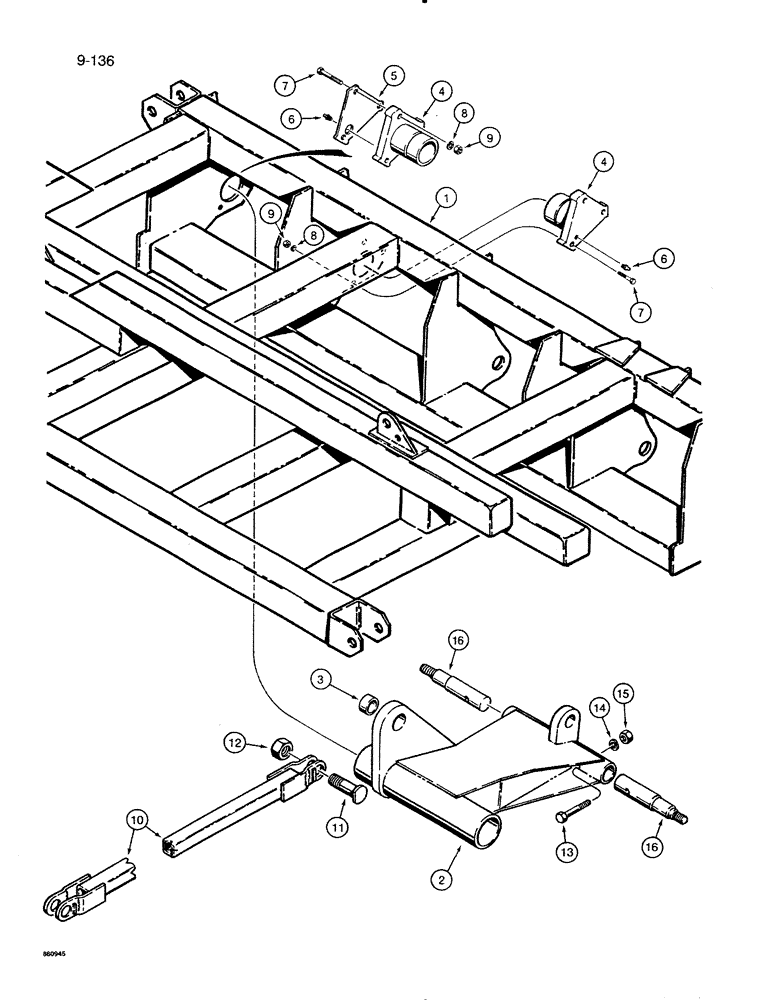

Запчасти Case IH 8500 (9-136) - GAUGE WHEEL PARTS, USED WITH FRAME SECTION NUMBER TWO, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - drill, section number 2, see page 9-99

1шт.

for correct frame

1шт.

2

1337308C1

ARM

- gauge wheel, dual

1шт.

3

1337423C1

BUSHING

- gauge wheel arm

1шт.

4

1337302C1

BUSHING

TUBE AND BUSHING -, Serial Range: arm-frame

2шт.

5

1337425C1

PLATE

- bushing tube, used on left-hand

1шт.

tube and bushing only

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2"

6шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

9

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

6шт.

10

1337305C1

LINK

- lift assist, gauge wheel arm to transport arm

1шт.

see page 9-119 for transport arm parts

1шт.

11

1337377C1

BOLT

-, Serial Range: link-arm

1шт.

12

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, self-locking, link bolt

1шт.

13

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

2шт.

14

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

16

REF

INSTRUCTION

SPINDLE -hub, 6 bolt, see page 9-9 for hub and bearings

2шт.
