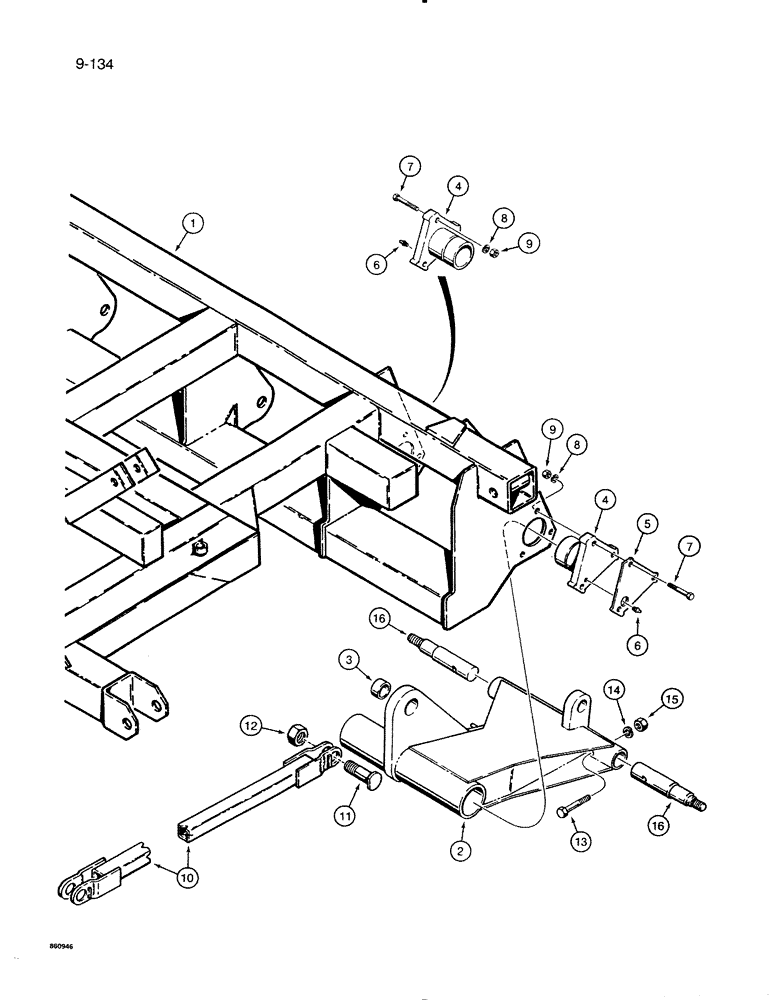

Запчасти Case IH 8500 (9-134) - GAUGE WHEEL PARTS, USED WITH FRAME SECTION NUMBER FOUR, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - drill, section number 4, see page 9-93

1шт.

for correct frame

1шт.

2

1337310C1

ARM

- gauge wheel, dual, used with 7 inch row spacing

1шт.

2

1337309C1

ARM

- gauge wheel, dual, used with 10 and 12 inch

1шт.

row spacing, not shown

1шт.

3

1337423C1

BUSHING

- gauge wheel arm

1шт.

4

1337302C1

BUSHING

TUBE AND BUSHING -, Serial Range: arm-frame

2шт.

5

1337425C1

PLATE

- bushing tube, used on right-hand tube

1шт.

and bushing only

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

7

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2"

6шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

9

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

6шт.

10

1337305C1

LINK

- lift assist, gauge wheel arm to transport arm

1шт.

see page 9-115 for transport arm parts

1шт.

11

1337377C1

BOLT

-, Serial Range: link-arm

1шт.

12

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, self-locking, link bolt

1шт.

13

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

2шт.

14

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

16

REF

INSTRUCTION

SPINDLE - hub, 6 bolt, see page 9-7 for hub and bearings

2шт.
