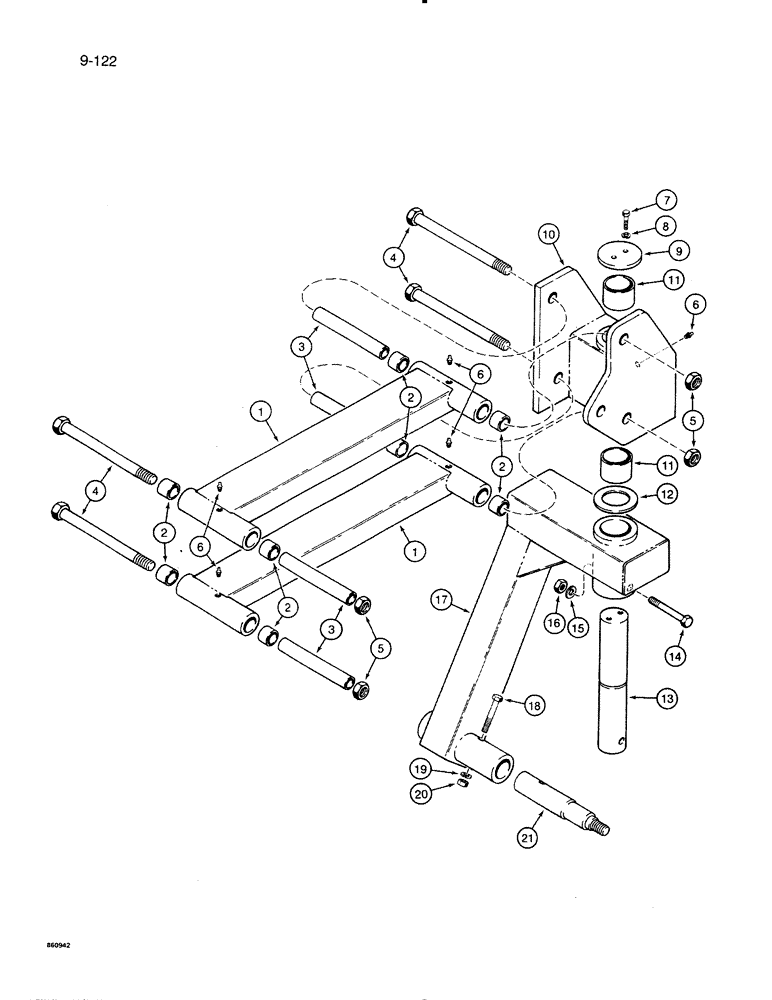

Запчасти Case IH 8500 (9-122) - PARALLEL ARM PARTS, USED WITH FRAME SECTION NUMBERS ONE AND SIX, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

89030C1

ARM

- parallel, gauge wheel

4шт.

2

1337421C1

BUSHING

- parallel arm

16шт.

3

1337384C1

TUBE

SPACER - arm mounting bolt

8шт.

4

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

- hex head, 7/8" - 9 NC x 10"

8шт.

5

21624R1

LOCK NUT,7/8"-9

NUT -hex, self-locking, 7/8" - 9 NC

8шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

10шт.

7

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4"

4шт.

8

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

89035C1

CAP

- shaft retainer

2шт.

10

89044C1

SPINDLE

BRACKET - parallel, Serial Range: arm-caster

2шт.

11

1337422C1

BUSHING

- caster wheel shaft

4шт.

12

1337385C1

SPACER

WASHER - thrust

2шт.

13

89036C1

SHAFT ASSY.

SHAFT - parallel arm caster

2шт.

14

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4"

2шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

2шт.

17

89045C1

ARM

CASTER - parallel arm

2шт.

18

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

2шт.

19

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21

REF

INSTRUCTION

SPINDLE - hub, 6 bolt, see page 9-7 for hub and bearings

2шт.
