Запчасти Case IH 8500 (9-114) - TRANSPORT ARM PARTS, USED W/ FRAME SECTION NO. 4, UNITS W/O SPRING CENTERED CASTER, 45 WIDE DRILL (09) - CHASSIS/ATTACHMENTS

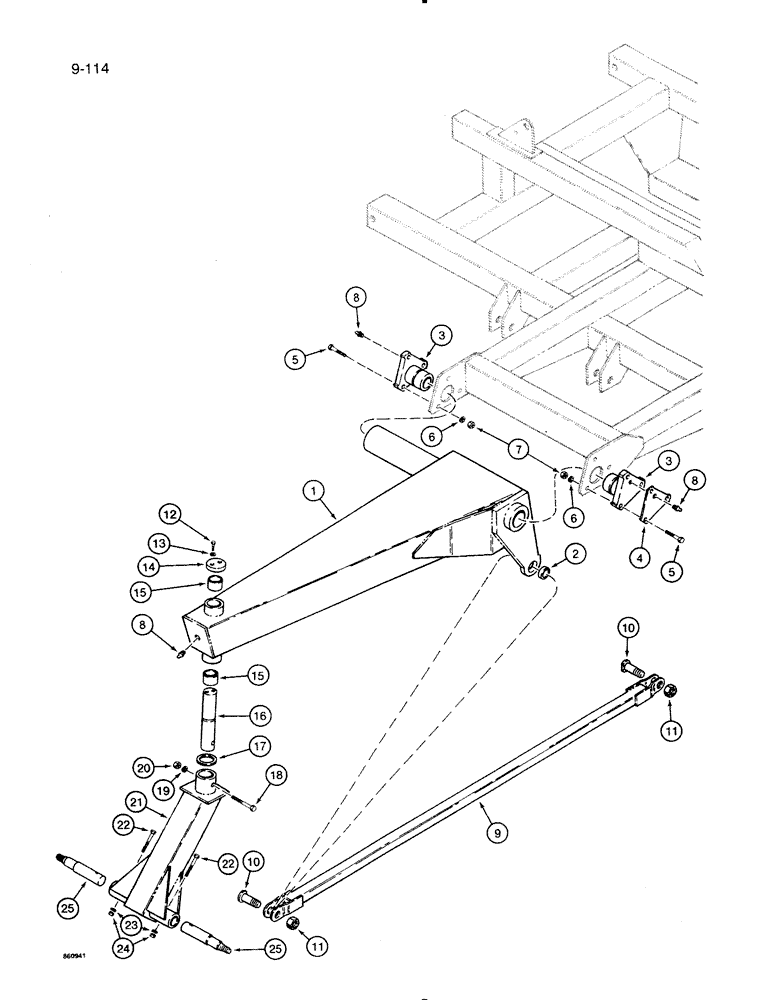

Схема запчастей Case IH 8500 - (9-114) - TRANSPORT ARM PARTS, USED W/ FRAME SECTION NO. 4, UNITS W/O SPRING CENTERED CASTER, 45 WIDE DRILL (09) - CHASSIS/ATTACHMENTS
19
23
12
4
25
21
8
25
6
11
15
10
13
6
24
7
2
16
9
15
1
22
20
11
3
5
3
18
8
10
8
14
22
17
5

Артикул

Название

Примечание

Количество

1

1337323C1

ARM

- transport, section number 4

1шт.

2

1337423C1

BUSHING

- transport arm

1шт.

3

1337302C1

BUSHING

TUBE AND BUSHING -, Serial Range: arm-frame

2шт.

4

1337425C1

PLATE

- bushing tube, used with right-hand

1шт.

tube and bushing only

1шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2"

6шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11NC

6шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

3шт.

9

1337305C1

LINK

- lift assist, gauge wheel arm to transport arm

1шт.

10

1337377C1

BOLT

-, Serial Range: link-arms

2шт.

11

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, self-locking, link bolt

2шт.

12

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4"

2шт.

13

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

89035C1

CAP

- shaft retainer

1шт.

15

1337422C1

BUSHING

- caster wheel shaft

2шт.

16

1337317C1

SHAFT

-, Serial Range: caster-arm

1шт.

17

1337385C1

SPACER

WASHER - thrust

1шт.

18

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4"

1шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

1шт.

21

1337318C1

ARM

CASTER - transport arm, dual wheel

1шт.

22

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

2шт.

23

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

24

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

25

REF

INSTRUCTION

SPINDLE - hub, 6 bolt, see page 9-7 for hubs and bearings

2шт.

Выбрано товаров: 26
