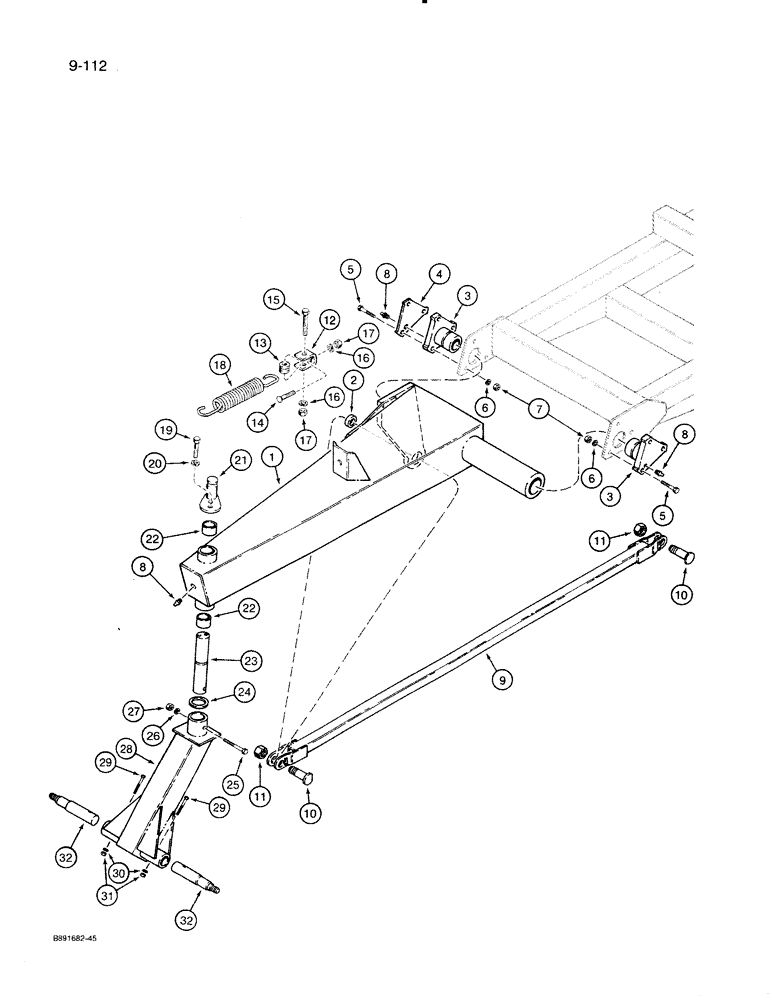

Запчасти Case IH 8500 (9-112) - TRANSPORT ARM PARTS, USED W/ FRAME SECTION NUMBER 3, UNITS W/ SPRING CENTERED CASTER, 45 WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1344625C1

ARM

- transport, section number 3

1шт.

2

1337423C1

BUSHING

- transport arm

1шт.

3

1337302C1

BUSHING

TUBE AND BUSHING -, Serial Range: arm-frame

2шт.

4

1337425C1

PLATE

- bushing tube, used with left-hand

1шт.

tube and bushing only

1шт.

5

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2"

6шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

-hex, 5/8" - 11 NC

6шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

3шт.

9

1337305C1

LINK

- lift assist, gauge wheel arm to transport arm

1шт.

10

1337377C1

BOLT

-, Serial Range: link-arms

2шт.

11

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, self-locking, link bolt

2шт.

12

1344603C1

CHANNEL

RETAINER - spring anchor

1шт.

13

1344607C1

TUBE

ANCHOR - caster wheel spring

1шт.

14

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

1шт.

15

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

1344608C1

SPRING

- caster wheel

1шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 inch NC x 1-1/4 inch

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

1344599C1

CAP

- shaft retainer, includes spring anchor pin

1шт.

22

1337422C1

BUSHING

- caster wheel shaft

2шт.

23

1344627C1

SHAFT

-, Serial Range: caster-arm

1шт.

24

1337385C1

SPACER

WASHER - thrust

1шт.

25

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4"

1шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

27

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

1шт.

28

1337318C1

ARM

CASTER - transport arm, dual wheel

1шт.

29

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

2шт.

30

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

31

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

32

REF

INSTRUCTION

SPINDLE - hub, 6 bolt, see page 9-7 for hubs and bearings

2шт.
