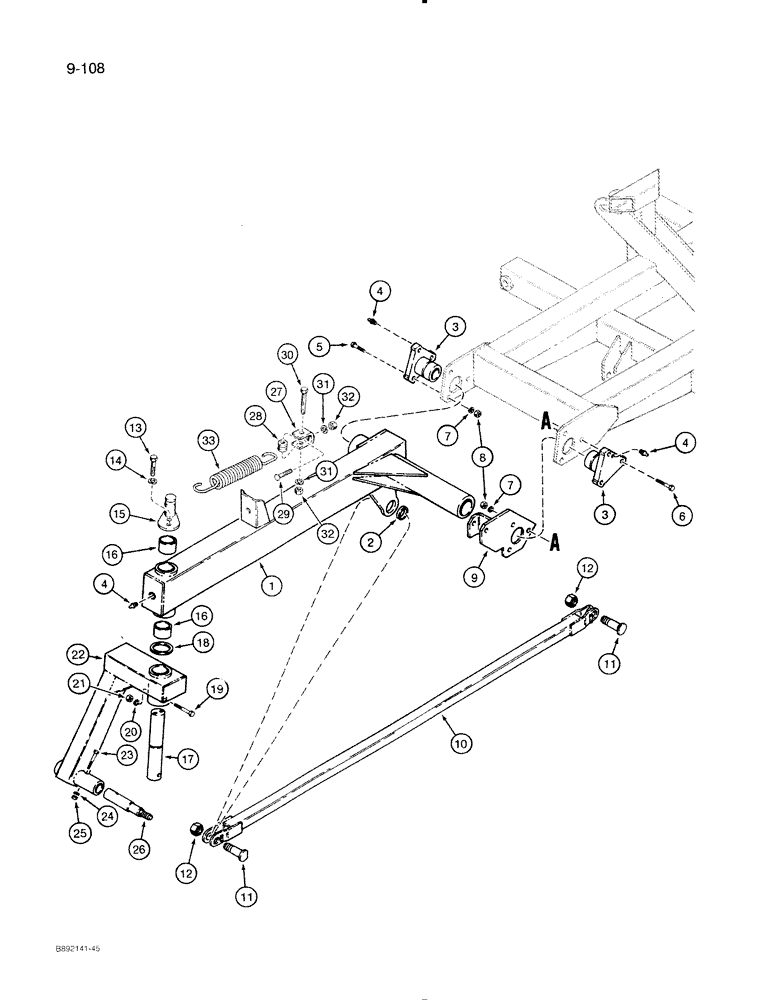

Запчасти Case IH 8500 (9-108) - LIFT ASSIST PARTS, USED W/ FRAME SECTION NUMBER SIX, UNITS W/ SPRING CENTERED CASTER, 45 WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1344801C1

ARM

- lift assist, section number 6

1шт.

2

1337423C1

BUSHING

- pivot, arm to lift link

1шт.

3

1337302C1

BUSHING

TUBE AND BUSHING -, Serial Range: arm-frame

2шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

3шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2"

3шт.

6

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

- hex head, 5/8" - 11 NC x 2-1/2"

3шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

8

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

6шт.

9

1337314C1

CLEVIS

BRACKET - mounting, adjusting screw, right-hand

1шт.

10

1337305C1

LINK

- gauge wheel arm to lift arm

1шт.

11

1337377C1

BOLT

-, Serial Range: link-arm

2шт.

12

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, self-locking, link bolt

2шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

1344599C1

CAP

- shaft retainer, includes spring anchor pin

1шт.

16

1337422C1

BUSHING

- caster wheel shaft

2шт.

17

1344799C1

SHAFT

- lift arm caster wheel

1шт.

18

1337385C1

SPACER

WASHER - thrust

1шт.

19

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4"

1шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

1шт.

22

1337316C1

ARM

CASTER - lift arm

1шт.

23

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

1шт.

24

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

26

REF

INSTRUCTION

SPINDLE - hub, 6 bolt, see page 9-7 for hub and bearings

1шт.

27

1344603C1

CHANNEL

RETAINER - spring anchor

1шт.

28

1344607C1

TUBE

ANCHOR - caster wheel spring

1шт.

29

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

1шт.

30

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

33

1344608C1

SPRING

- caster wheel

1шт.
