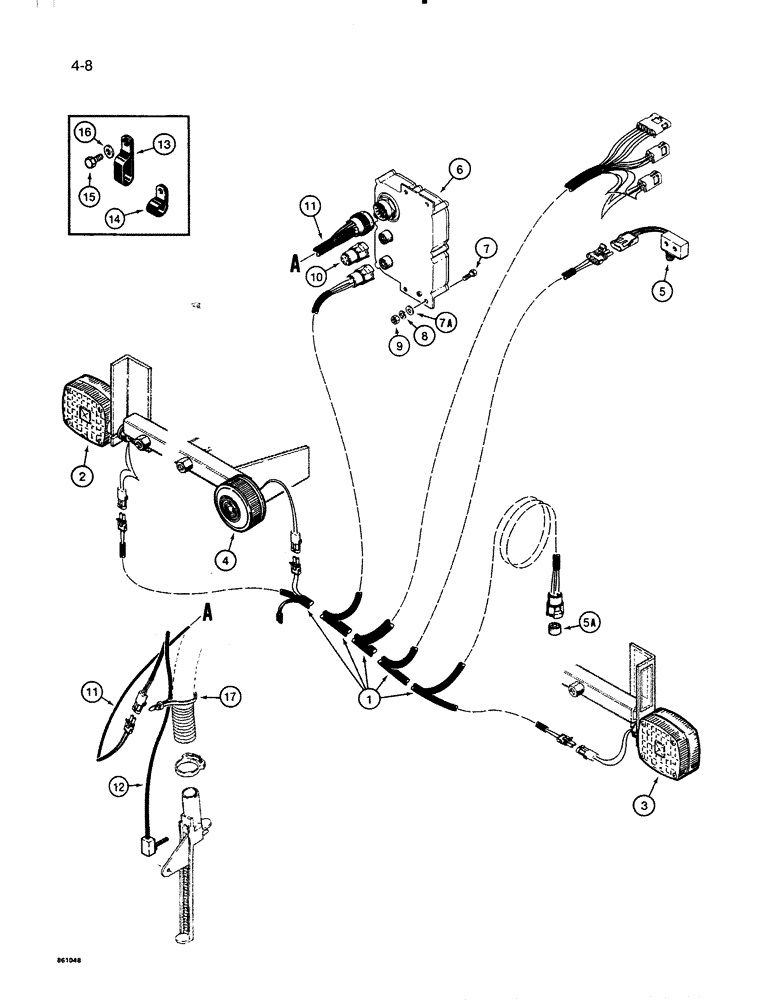

Запчасти Case IH 8500 (4-08) - TOOL BAR HARNESS & BLOCKAGE MODULE, UNITS W/ 10 AND 12 INCH ROW SPACING AND FUNCTION MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS

1

91985C3

HARNESS

- tool bar, 10 inch row spacing, to blockage module number 4, to transport lamps and clutch switch

1шт.

1

92205C2

HARNESS

- tool bar, 12 inch row spacing, to blockage module number 3, to transport lamps and clutch switch

1шт.

2

91913C91

LIGHT

LAMP ASSEMBLY - turn signal, left-hand, parts list page 4-31

1шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - turn signal, right-hand, parts list page 4-31

1шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail, left-hand, parts list page 4-29

1шт.

5

84053C1

SWITCH

AND WIRE ASSEMBLY - micro, drive clutch, see page 9-63 for related parts

1шт.

5a

92202C1

PLUG

- terminator, harness

1шт.

6

91482C2

CONTROL

MODULE - blockage, new, number 3, see page 4-7, item 6 for remanufactured module and return part numbers

1шт.

7

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

7a

120392

WASHER,1/4", SAE

- flat, 1/4"

4шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

10

1337046C1

PLUG

- terminator, blockage module

1шт.

11

91978C1

HARNESS

- module to sensor pins, units with 10 inch row spacing

1шт.

11

92206C1

HARNESS

- module to sensor pins, units with 12 inch row spacing

1шт.

12

84202C1

SENSOR

PIN AND WIRE - module harness to furrow openers, 5 used with 12 inch row spacing, 6 used with 10 inch row spacing

5-6шт.

13

362666R1

CLIP

CLAMP - harness to tool bar, 2 wire

1шт.

14

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - harness to tool bar, 1 wire

1шт.

15

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex head, 3/8" - 16 NC x 1/2", harness clamp to weldnuts on tool bar

1шт.

16

120394

WASHER,3/8", SAE

WASHER - flat, 3/8"

1шт.

17

533959R1

CABLE TIE,.135" x 11"

STRAP - nylon tie, small

1шт.
