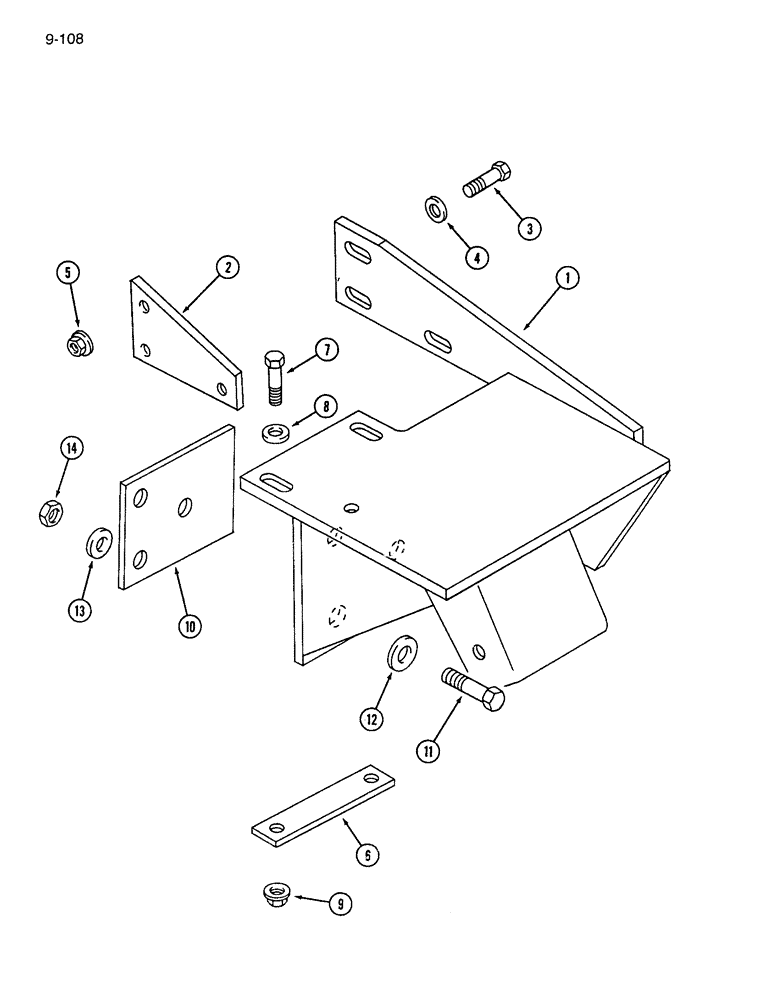

Запчасти Case IH 7200 (9-108) - DISC MARKER ATTACHMENT - MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

1279670C1

BRACKET

ASSEMBLY - left (Shown)

1шт.

1

1279671C1

BRACKET

ASSEMBLY - right

1шт.

2

1279677C1

PLATE

- backup

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

6шт.

5

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

6шт.

6

1279675C1

BAR

- backup

2шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

8

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

4шт.

9

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

4шт.

10

1279882C1

PLATE

- spacer

2шт.

11

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

8шт.

12

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

4шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.
