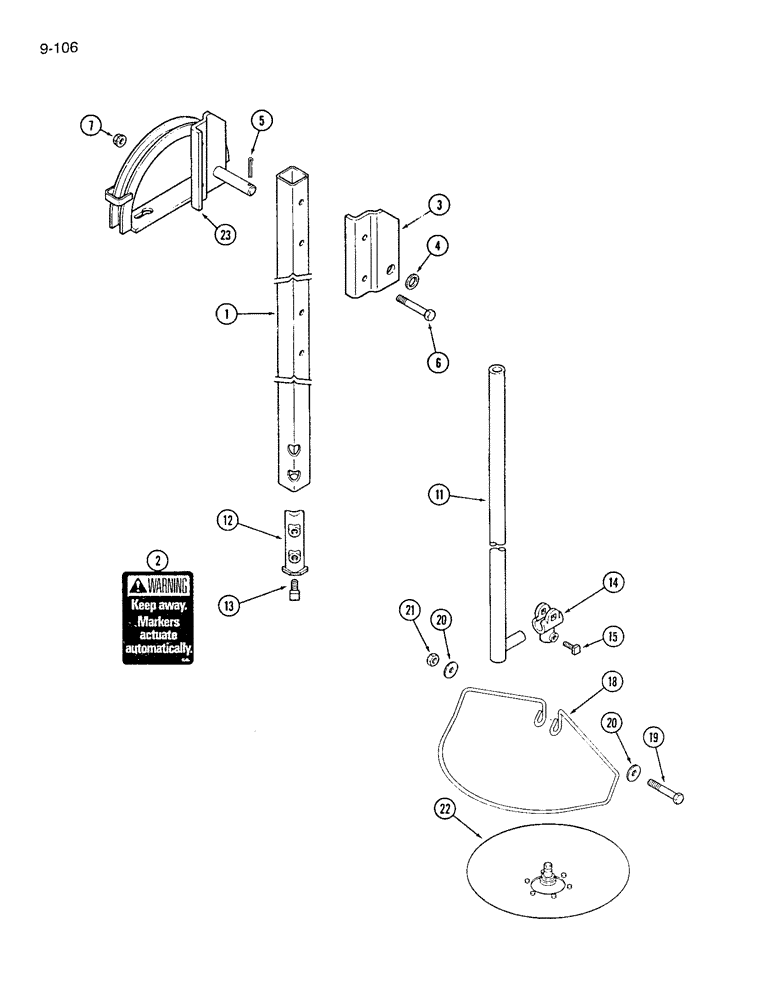

Запчасти Case IH 7200 (9-106) - DISC MARKER ATTACHMENT, HYDRAULIC FOLDING (09) - CHASSIS/ATTACHMENTS

1

1254188C92

TUBE

- marker (28-34 foot, includes Ref. 2)

2шт.

1

1279838C91

TUBE

- marker (28-34 foot)

2шт.

2

REF

INSTRUCTION

DECAL - caution, pivot marker (See Page 9-153)

1шт.

3

113041C1

SUPPORT

BRACKET - pivot, left

1шт.

3

100222C1

SUPPORT

BRACKET - pivot, right (Shown)

1шт.

4

495-81051

WASHER,29/32" x 1 1/4" x .060"

- flat, 29/32 x 1-1/4 x 3/64 inch

2шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

6

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

7

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

11

100226C1

TUBE

- marker stud

2шт.

12

1264424C1

STOP

BLOCK - tube

2шт.

13

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - set, square head, 1/2 NC x 1-1/4 inch, cup point

4шт.

14

97741C1

PIVOT

CLAMP - axle

2шт.

15

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 inch NC x 3/4 inch

2шт.

18

113223C1

GUARD

- marker disc

2шт.

19

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

20

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

21

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

22

REF

INSTRUCTION

DISC ASSEMBLY - marker, 5 hole (See Page 9-109)

2шт.

23

100219C1

PULLEY

BRACKET - pulley, left

1шт.

23

100220C1

PULLEY

BRACKET - pulley, right (Shown)

1шт.
