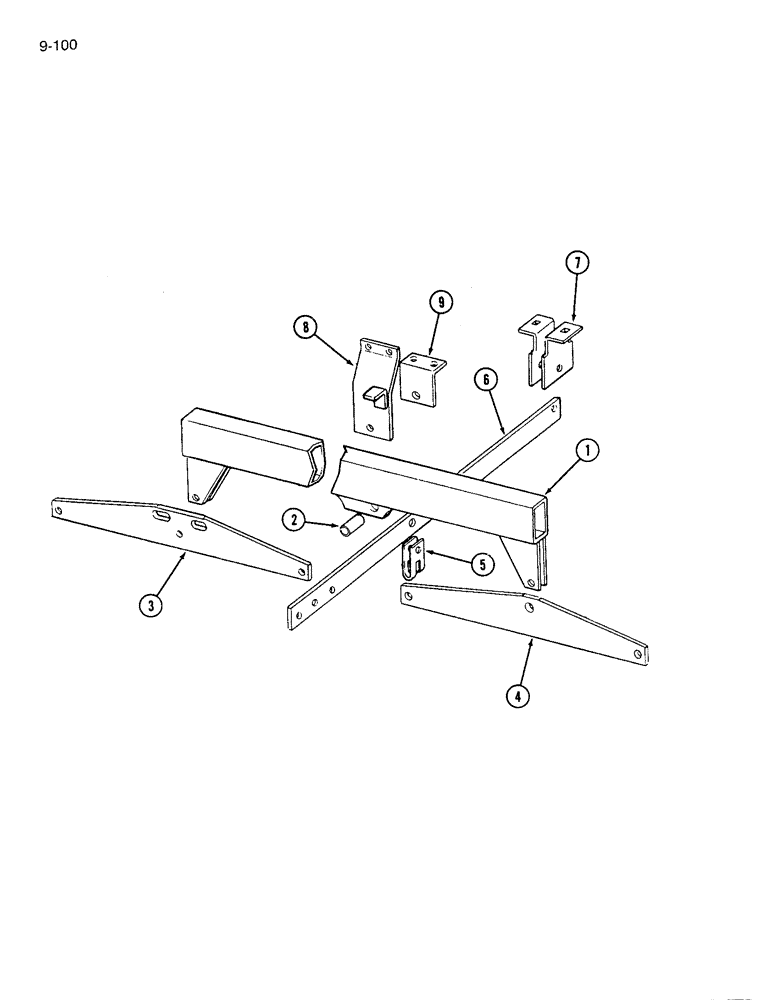

Запчасти Case IH 7200 (9-100) - PRESS WHEEL GANG REAR SUSPENSION (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
843157C1
TUBE,1402 mm L
ASSEMBLY - equalizer
2шт.
540851R1
HEADED PIN,1/2" x 1 7/8", G5
PIN - headed, 3/4 x 1-7/8 inch
4шт.
495-81041
WASHER,25/32" x 1 1/2" x .060"
- flat, 25/32 x 1-1/2 x 1/16 inch
4шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1-1/2"
4шт.
2
843148C1
SPACER
- equalizer tube pivot
2шт.
3
816180C1
BAR
- center evener
1шт.
4
816184C1
BAR
- outer evener
2шт.
5
819143C1
CLEVIS
- drawbar
6шт.
21899R1
HEADED PIN
PIN - headed, 1/2 x 2-1/2 inch
6шт.
495-81024
WASHER,17/32" x 1 1/4" x .060"
- flat, 17/32 x 1-1/4 x 3/64 inch
12шт.
138087
CLEVIS PIN,5/8" x 1.610"
PIN - clevis, 5/8 x 1-5/8 inch
6шт.
432-820
COTTER PIN,1/8" x 1 1/4"
PIN, SPLIT (COTTER), 1/8" x 1-1/4"
6шт.
495-81027
WASHER,21/32" x 1 1/2" x .120"
- flat, 21/32 x 1-1/2 x 7/64 inch
6шт.
6
817419C1
BAR
- gang draw
6шт.
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch
12шт.
131-930
FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5
- hex flange, self locking, 1/2 inch NC
12шт.
7
817017C1
BRACKET
- gang drawbar
2шт.
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch
8шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
8шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
8шт.
21848R1
HEADED PIN,5/8" x 2"
PIN - headed, 5/8 x 1-3/4 inch
2шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
3/16" x 1 1/4"
2шт.
495-81027
WASHER,21/32" x 1 1/2" x .120"
- flat, 21/32 x 1-1/2 x 7/64 inch
4шт.
8
817437C1
SUPPORT
ASSEMBLY - equalizer tube outer
2шт.
413-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
4шт.
425-1010
NUT,5/8"-11, G5
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
425-1010
NUT,5/8"-11, G5
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
9
817023C1
SUPPORT
- equalizer tube inner
2шт.
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
4шт.
425-1010
NUT,5/8"-11, G5
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
Выбрано товаров: 34
