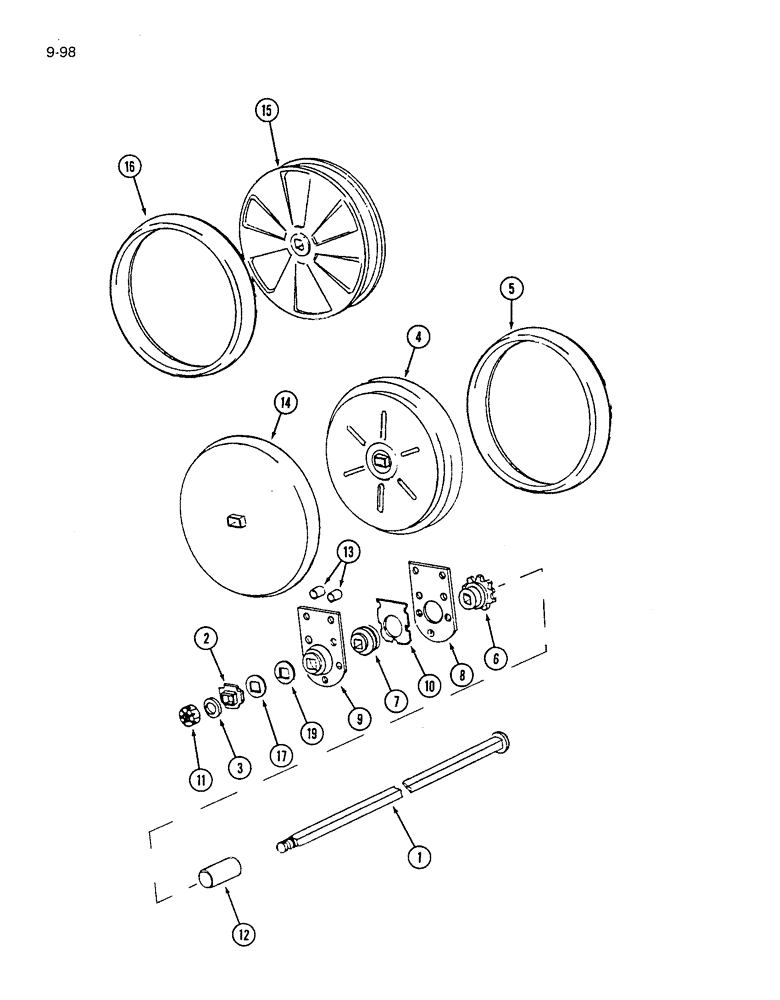

Запчасти Case IH 7200 (9-098) - PRESS WHEEL GANG (09) - CHASSIS/ATTACHMENTS

1

816153C3

BOLT,Wheel, 1" - 8 x 54.3"

- gang arbor left, right and center

3шт.

2

816154C1

SQ HOLE WASHER

- lock, tab (Machines built prior to August 1985)

3шт.

3

496-81008

WASHER,1.06" ID x 1.88" OD x 0.13" Thk

- flat, 1-1/16 x 1-7/8 x 1/8 inch, hardened (Machines built August 1981 and after)

3шт.

4

816189C2

WHEEL,501.65mm OD x 82.55mm W

ASSEMBLY - 3 x 20 inch, shielded press (Quantity of 1 per furrow opener)

1шт.

5

816195C2

TYRE/TIRE

TIRE - 3 x 20 inch, press wheel, oval (Quantity of 1 per wheel, 816189C2)

1шт.

6

603902R2

SPROCKET ASSY.

SPROCKET - main drive, 10 tooth

1шт.

7

818112C91

BALL BEARING,33.02mm ID x 84.95mm OD x 36.51mm W

- press wheel

6шт.

8

819896C1

RETAINER

- gang bearing

6шт.

9

819897C1

FLANGE

- gang bearing

6шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

6шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

12шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

12шт.

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

18шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

18шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

18шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

24шт.

10

819951C1

GASKET

- gang bearing

12шт.

11

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

3шт.

12

843277C1

SPACER

- gang, 9/16 inch (Replaces 818161C1)

32шт.

12

843301C1

SPACER

- gang, 3-5/8 inch (Replaces 818160C1)

14шт.

13

HA4457

SPACER

- 1/2 x 5/8 inch pipe

12шт.

14

605082R93

WHEEL

- 2-1/4 x 20 inch, shielded round rim (Quantity of 1 per furrow opener)

1шт.

15

841171C1

WHEEL

ASSEMBLY - 3 x 20 inch, heavy duty (Quantity of 1 per furrow opener)

1шт.

16

843188C1

TYRE/TIRE

TIRE - zero pressure heavy duty (Quantity of 1 per wheel, 841171C1)

1шт.

17

1279012C1

SQ HOLE WASHER,32.5mm ID x 70mm OD x 3mm Thk

- press wheel spacer

1шт.
