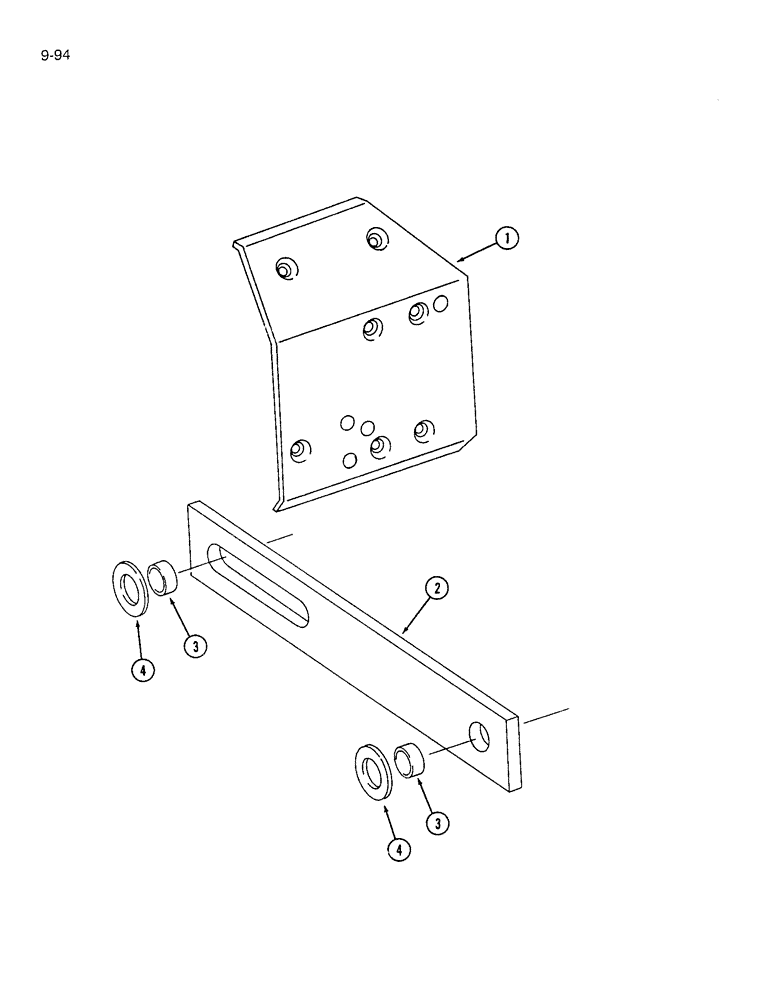

Запчасти Case IH 7200 (9-094) - HITCH BUMPER PLATE AND STABILIZER, FOR DRILLS WITH MULTIPLE (09) - CHASSIS/ATTACHMENTS

1

1268392C1

PLATE

- bumper left (Two drill hitch)

1шт.

1

1268392C1

PLATE

- bumper left (Three drill hitch)

2шт.

1

1268392C1

PLATE

- bumper left (Four drill hitch)

3шт.

1

1268393C1

PLATE

- bumper right (Two drill hitch)

1шт.

1

1268393C1

PLATE

- bumper right (Three drill hitch)

2шт.

1

1268393C1

PLATE

- bumper right (Four drill hitch)

3шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch (Quantity of 5 per plate)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch (Quantity of 2 per plate)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Quantity of 1 per bolt) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Quantity of 1 per bolt) 3/8"

1шт.

2

816374C1

BAR

- stabilizer, hitch (Two drill hitch)

1шт.

2

816374C1

BAR

- stabilizer, hitch (Three drill hitch)

2шт.

2

816374C1

BAR

- stabilizer, hitch (Four drill hitch)

3шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (Quantity of 2 per bar)

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (Quantity of 1 per bolt)

1шт.

492-11075

LOCK WASHER,3/4"

(Quantity of 1 per bolt) 3/4"

1шт.

3

1277514C1

BUSHING

SPACER - stabilizer bar (Quantity of 2 per bar)

1шт.

4

597176R1

WASHER

- stabilizer bar (Quantity of 2 per bar)

1шт.
