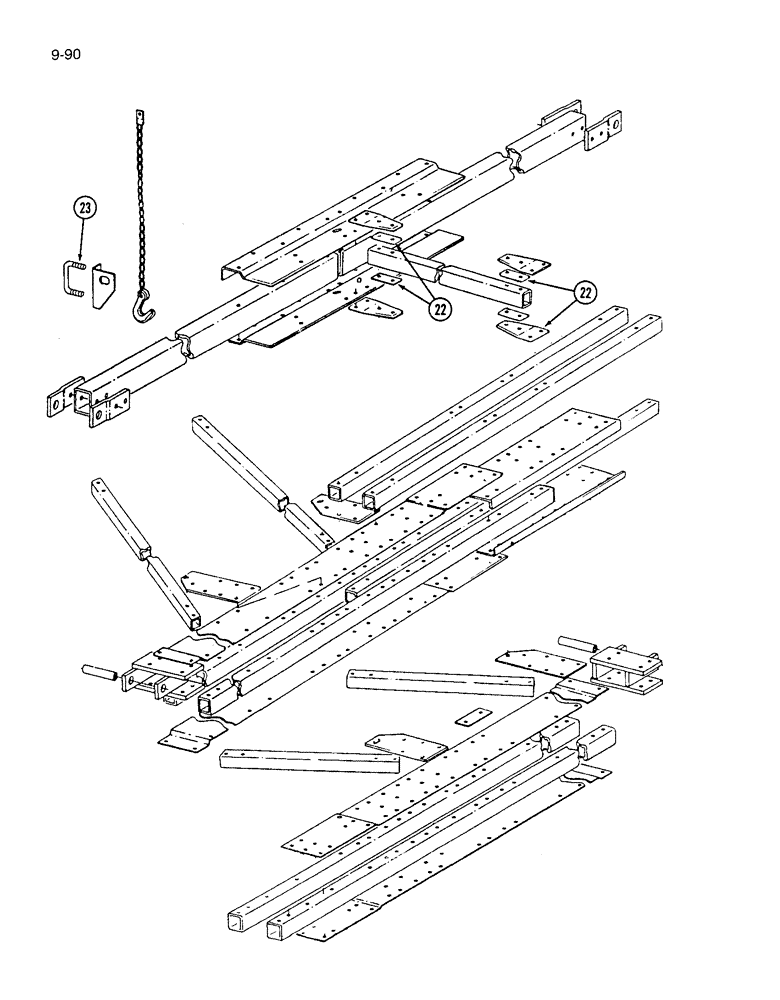

Запчасти Case IH 7200 (9-090) - CENTER HITCH AND STABILIZER - FOUR DRILL, MACHINES BUILT (09) - CHASSIS/ATTACHMENTS

22

841142C1

BAR

- tube mounting spacer (Continued from previous page)

8шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

12шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

18шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

8шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(For 12 foot drills) Hex, 5/8"-11 x 4 1/2", G5

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

12шт.

425-1010

NUT,5/8"-11, G5

46шт.

23

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
