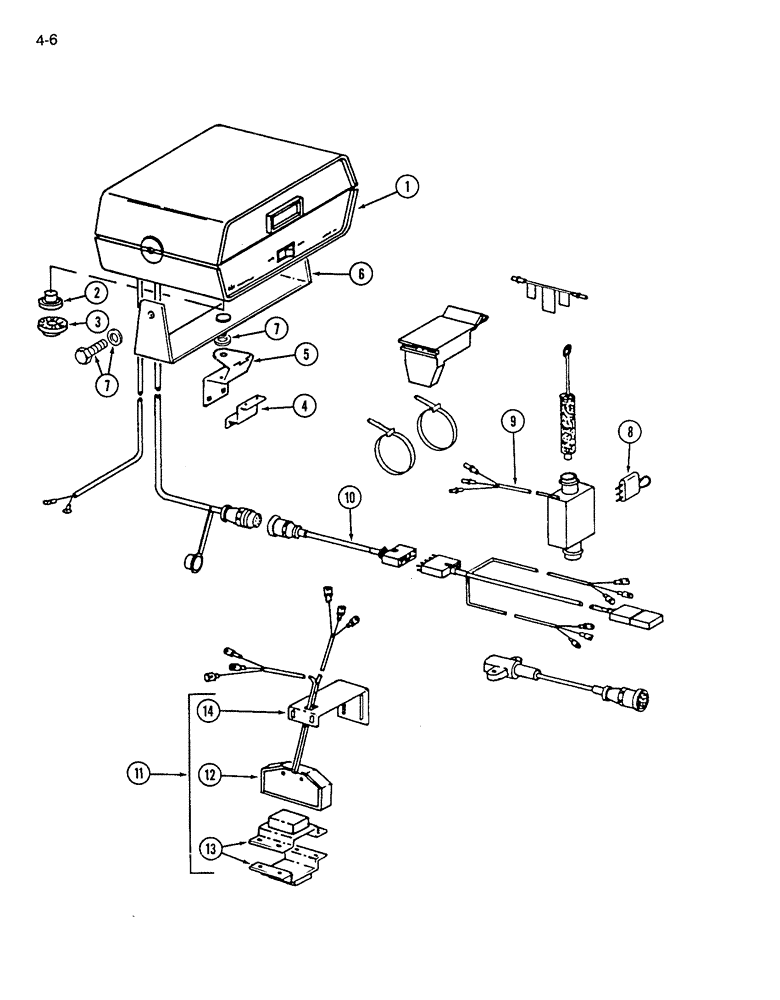

Запчасти Case IH 7200 (4-06) - SEED FLOW II MONITOR (04) - ELECTRICAL SYSTEMS

1

245821C92

CONTROL MONITOR

CONSOLE ASSEMBLY - seed flow monitor

1шт.

1

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Instrument Panel

1шт.

1

126420A1C

CORE-MONITOR

Return Number, Instrument Panel

1шт.

223-38

FUSE,3 Amp, Type 3AG

FUSE - 3 ampere, 3AG

1шт.

2

1261548C1

ALARM

ALARM - monitor

1шт.

3

1261549C1

DAMPER

DAMPER - alarm

1шт.

58554C1

BULB,C2F, #1892, 14V

BULB - lamp, No. 1892

1шт.

4

1261522C91

BRACKET, SUPPORTING

BRACKET - cab mounting

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

392-11031

LOCK WASHER,5/16"

5/16"

4шт.

325-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

4шт.

5

90905C2

BRACKET, SUPPORTING

BRACKET - case monitor

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT - hex, 5/16 NC x 1 inch

2шт.

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

6

1261523C91

BRACKET

BRACKET - console

1шт.

7

1261524C91

REPAIR KIT

KNOB KIT - (Includes 2 knobs and 3 washers)

1шт.

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

325-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

8

245617C1

CONNECTOR,ELECTRIC

CABLE - shortening plug

2шт.

9

128817C1

BRUSH, COMMUTATOR

BRUSH BRUSH - sensor cleaning

1шт.

10

90925C1

CABLE

HARNESS - monitor adapter

1шт.

11

819972C91

SENSOR

KIT - granular shaft sensor

1шт.

12

818367C91

SENSOR

SENSOR ASSEMBLY - shaft rotation

1шт.

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, nylon, 14 inch

4шт.

261-1448

SELF-TAP SCREW,Hex Hd, #8 x 1/2"

SCREW - self-tapping, pan head Phillips, No. 8 x 1/2 inch

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

13

818368C91

MAGNET

MAGNET - feed shaft

1шт.

463-1086

SCREW,Hex Hd, #8-32 x 3/8"

SCREW - machine, hex, No. 8 x 3/8 inch

2шт.

25629R1

SCREW - slotted pan head, No. 4 x 1/4 inch

2шт.

492-11004

LOCK WASHER,#4

Washer, Lock, #4

2шт.

225-14104

NUT,#4-40

NUT, #4-40

2шт.

14

818369C91

BRACKET

BRACKET - sensor feed shaft

1шт.

463-1086

SCREW,Hex Hd, #8-32 x 3/8"

SCREW - machine, hex, No. 8 x 3/8 inch

2шт.

495-21019

WASHER,#8

WASHER, #8

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

225-14108

NUT,#8-32

NUT - hex, No. 8

2шт.
