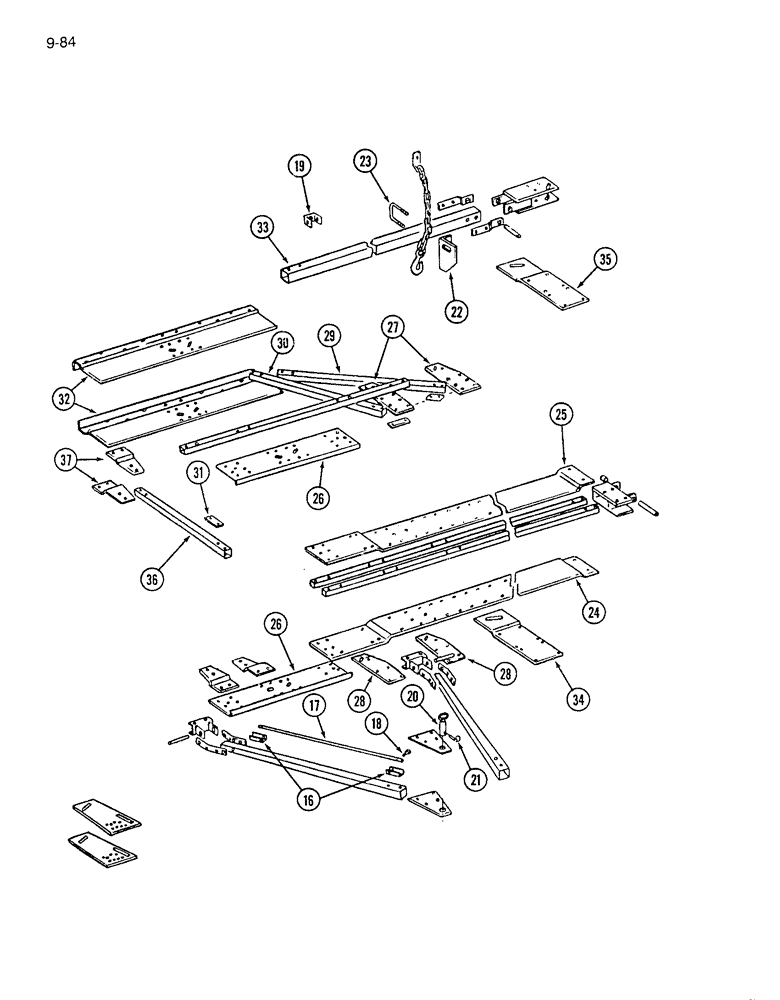

Запчасти Case IH 7200 (9-084) - HEAVY DUTY HITCH - FOUR DRILL, MACHINES BUILT 1980 THROUGH (09) - CHASSIS/ATTACHMENTS

16

819018C2

CHANNEL

- transport tube support

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

819022C1

TUBE

- hitch transport support

1шт.

18

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

3шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

3шт.

19

819010C1

YOKE

- tube support

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

817771C1

PIN

- hitch

1шт.

21

621006C1

PIN

- lock

1шт.

22

841153C1

ANGLE

- frame support chain

2шт.

23

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

841077C2

TUBE

SUPPORT - front tube (Right top and left lower)

2шт.

25

841078C2

SUPPORT

- front tube (Right lower and left top)

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

26

819879C2

SUPPORT

- front extension

2шт.

27

819876C2

BAR

- diagonal brace tube outer

4шт.

28

841082C1

BAR

- diagonal brace tube inner

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

12шт.

425-1010

NUT,5/8"-11, G5

12шт.

29

819882C2

TUBE,2171.7 mm Length

- diagonal brace outer

2шт.

30

819883C1

TUBE,101.5" Length

- diagonal brace inner

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

425-1010

NUT,5/8"-11, G5

16шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

12шт.

31

841142C1

BAR

- tube mounting spacer

10шт.

32

841137C1

SUPPORT

- rear extension

2шт.

33

841133C1

TUBE,2742 mm Length

- hitch main frame rear

2шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

6шт.

425-1010

NUT,5/8"-11, G5

6шт.

34

841136C1

BAR

- basic hitch tie center drill (Left lower and right top)

2шт.

35

841140C1

BAR

- basic hitch tie center drill (Left top and right lower)

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

36

841132C1

TUBE

- hitch center connecting(replaces 841132C2)

1шт.

37

841134C1

BAR

- tube mounting

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

6шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

425-1010

NUT,5/8"-11, G5

10шт.
