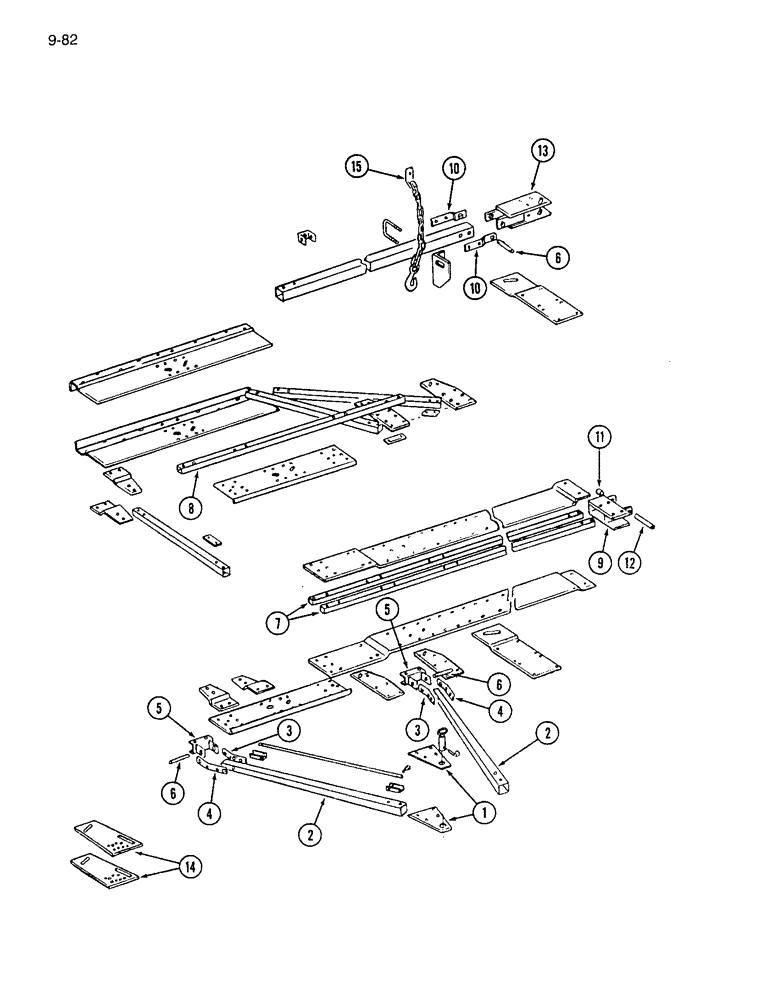

Запчасти Case IH 7200 (9-082) - HEAVY DUTY HITCH - FOUR DRILL, MACHINES BUILT 1980 THROUGH (09) - CHASSIS/ATTACHMENTS

1

819892C1

PLATE

- hitch

2шт.

2

819684C1

TUBE,2245 mm Length

FRAME - hitch

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

425-1010

NUT,5/8"-11, G5

4шт.

3

819894C1

SUPPORT

- hitch tube inner

2шт.

4

819895C1

SUPPORT

- hitch tube outer

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

5

819770C1

PIVOT

- hitch tube

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

6

819724C1

PIN

- pivot

4шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

6шт.

32-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

8шт.

7

819874C2

TUBE

BRACE - hitch main frame front

4шт.

8

818118C2

TUBE,2021 mm Length

BRACE - center reinforcing

1шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

9

819889C1

PIVOT

- outer drill frame

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

10

841130C1

BAR

- frame connecting

4шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

11

819782C1

SPACER

- pivot

2шт.

12

819781C1

SPACER

- pivot

2шт.

13

819656C2

SUPPORT

- wing rear

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

14

819772C2

PLATE

- basic hitch tie wing right

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

425-1214

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC

4шт.

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch

12шт.

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

15

819901C2

CHAIN (AG)

CHAIN - frame support

2шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

2шт.
