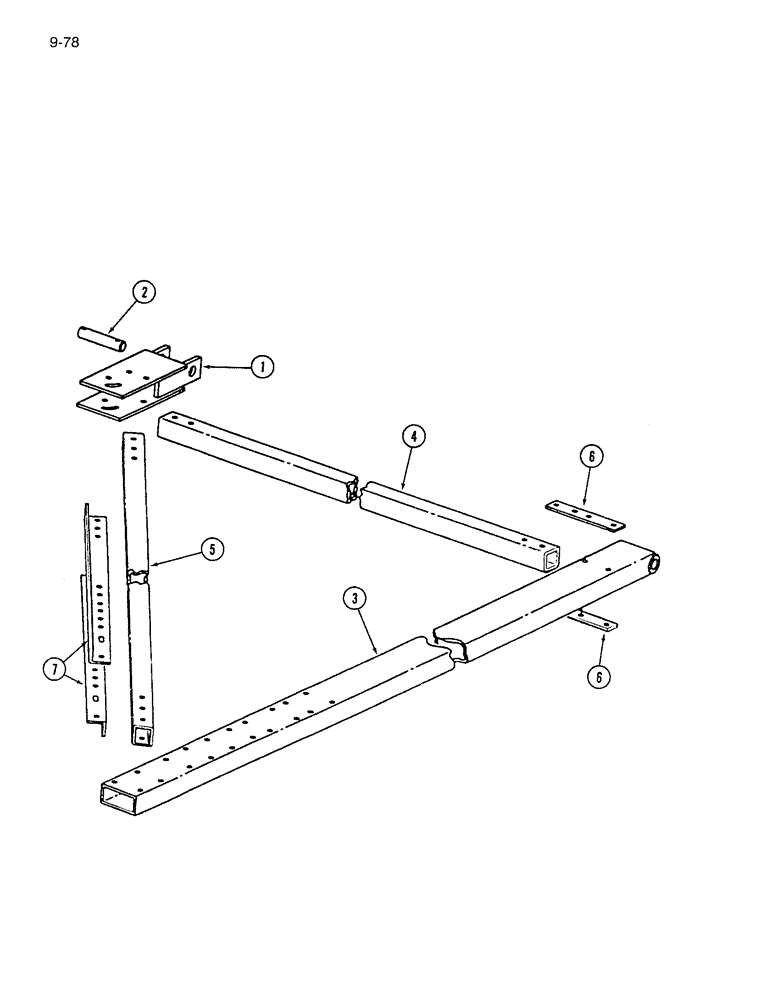

Запчасти Case IH 7200 (9-078) - WING HITCH - THREE AND FOUR DRILL, MACHINES BUILT 1985 AND (09) - CHASSIS/ATTACHMENTS

1

819656C2

SUPPORT

- wing rear

2шт.

2

819724C1

PIN

- pivot

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

3

1279424C1

TUBE

ASSEMBLY - wing

2шт.

4

819662C1

CHANNEL

TUBE - wing side channel (Three drill sizes)

2шт.

4

1279426C1

TUBE,1887.73 mm Length

- wing side channel (Four drill sizes)

2шт.

5

819661C2

TUBE,101.5" Length

- wing diagonal

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

819664C1

BAR

PLATE - side channel connecting

4шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (Three drill sizes)

4шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Three drill sizes) Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

(Four drill sizes) Hex, 1/2"-13 x 3 3/4", G5

4шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Qty of 1 per bolt) 1/2"-13, G5

1шт.

7

1279410C1

ANGLE

- diagonal tube tie

4шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.
