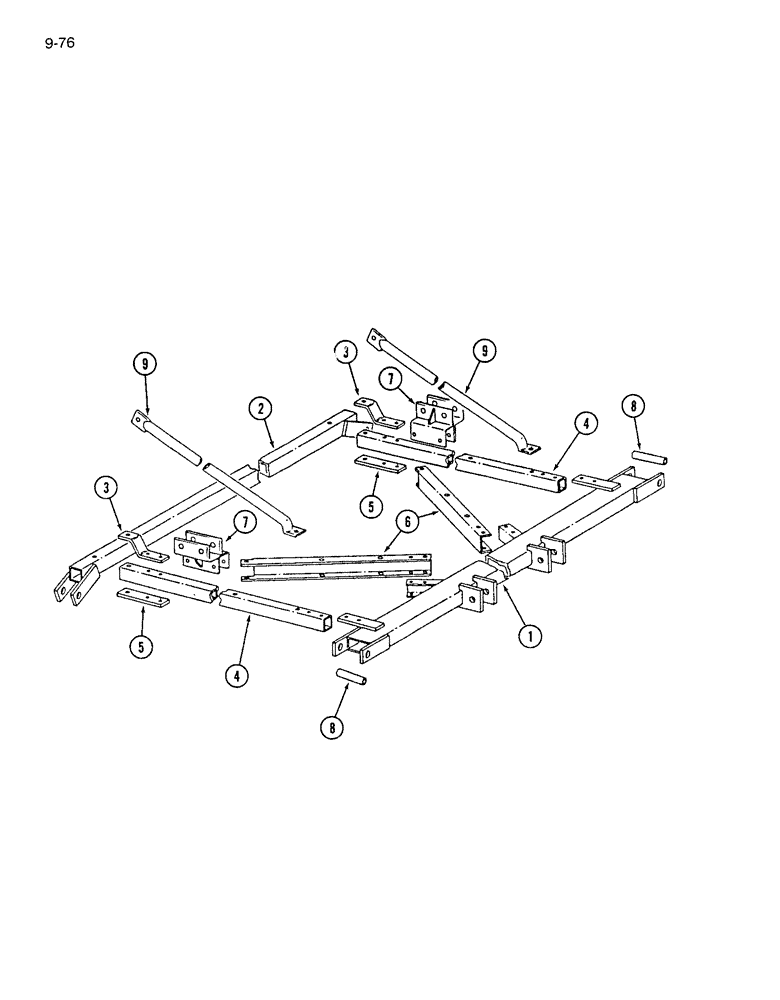

Запчасти Case IH 7200 (9-076) - CENTER HITCH AND STABILIZER - THREE DRILL, MACHINES BUILT (09) - CHASSIS/ATTACHMENTS

1

819636C1

BEAM

- center front

1шт.

2

819783C1

BEAM

- center rear

1шт.

3

819792C1

SUPPORT

- side tube

2шт.

4

819637C4

TUBE,1872, 31.75 mm Length

- center side

2шт.

5

819793C1

BAR

- center side tube reinforcing lower

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

6

819640C3

CHANNEL

- front corner

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

7

818300C1

SUPPORT

ASSEMBLY - basic hitch anchor

2шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

4шт.

8

1279421C1

SPACER

- hitch pivot

2шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

9

1279789C1

BRACE

ASSEMBLY - hitch

2шт.
