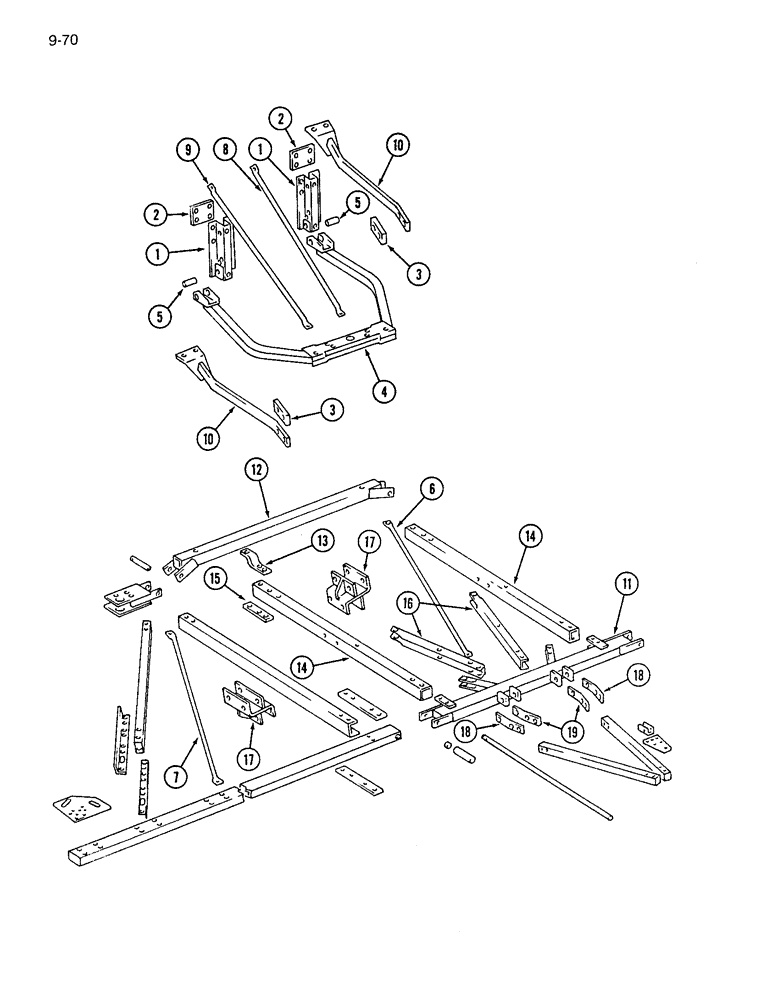

Запчасти Case IH 7200 (9-070) - HEAVY DUTY HITCH - THREE DRILL, MACHINES BUILT 1980 THROUGH (09) - CHASSIS/ATTACHMENTS

1

817029C2

SUPPORT

ASSEMBLY - hitch

6шт.

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

4шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

4шт.

2

817357C1

BAR

- support backing

12шт.

3

818133C1

BAR

- support filler (Used only with brace assembly 818130C1)

6шт.

3

1279477C1

BAR

- support spacer, 3/4 inch

6шт.

4

818366C2

TRAILER HITCH

HITCH ASSEMBLY - basic (See Page 9-49)

2шт.

5

818251C1

PIN

- hitch pivot channel

2шт.

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

4шт.

6

816371C3

BRACE

- hitch left, 45-1/2 inch (Order (2) braces 1279789C1)

1шт.

6

1279789C1

BRACE

- hitch left and right, 47 inch

2шт.

7

816372C3

BRACE

- hitch right, 45-1/2 inch (Order (2) braces 1279789C1)

1шт.

8

818383C2

BRACE

- hitch left, 48-29/32 inch

2шт.

9

818384C2

BRACE

- hitch right, 48-29/32 inch

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

6шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

6шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

12шт.

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch

6шт.

10

1279475C1

BRACE

ASSEMBLY - hitch support (Replaces brace assembly 818130C1 by also ordering, 1279477C1 bar)

6шт.

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

12шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

12шт.

11

819636C1

BEAM

- center front

1шт.

12

819783C1

BEAM

- center rear

1шт.

13

819792C1

SUPPORT

- side tube

2шт.

14

819637C4

TUBE,1872, 31.75 mm Length

- center side

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

425-1010

NUT,5/8"-11, G5

2шт.

15

819793C1

BAR

- center side tube reinforcing lower

2шт.

16

819640C3

CHANNEL

- front corner

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

17

818300C1

SUPPORT

ASSEMBLY - basic hitch anchor

2шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18

819644C1

SUPPORT

- front hitch tube outer

2шт.

19

819643C1

SUPPORT

- front hitch tube inner

2шт.

636167R1

HEADED PIN,1" x 5 5/8"

PIN - headed, 1 x 5-5/8 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.
