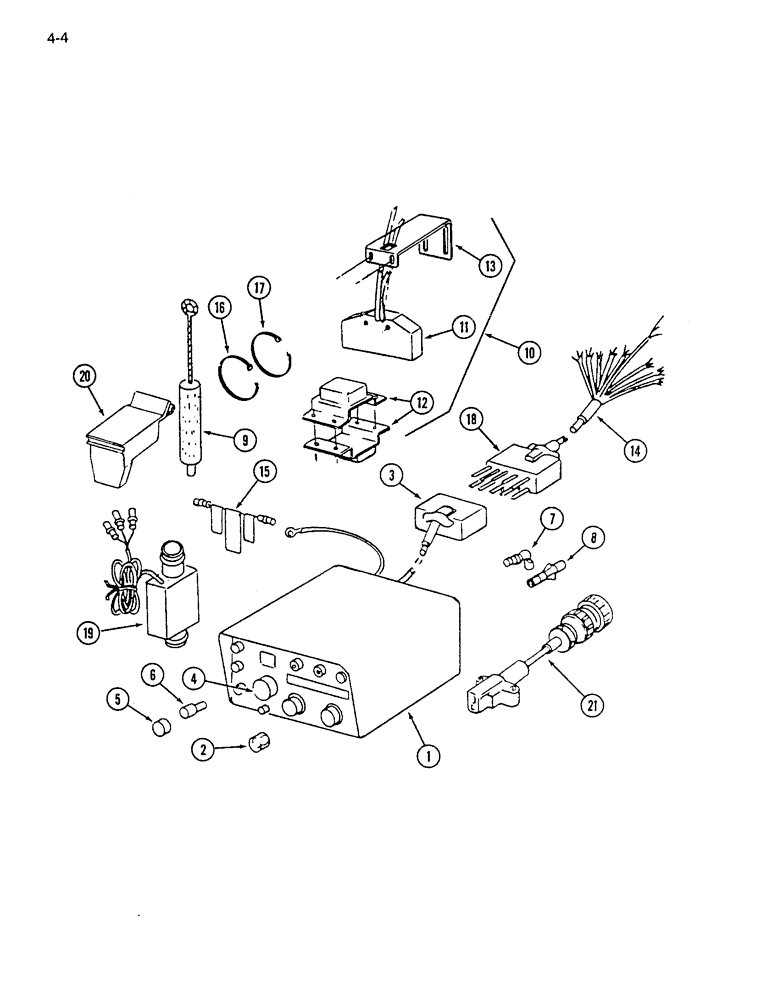

Запчасти Case IH 7200 (4-04) - SEED FLOW I MONITOR (04) - ELECTRICAL SYSTEMS

1

79299C1

CONSOLE

ASSEMBLY - seed flow monitor (No longer available, order 245821C92 seed flow II monitor, see page 4-7)

1шт.

133924C1

DECAL

- seed flow (Not shown)

1шт.

2

223-38

FUSE,3 Amp, Type 3AG

- 3 ampere, 3AG

1шт.

3

128814C1

SOCKET

- female connector

1шт.

4

128816C1

BUZZER

- sonalert

1шт.

5

58499C1

LENS

- amber

1шт.

6

58554C1

BULB,C2F, #1892, 14V

- lamp, No. 1892

1шт.

7

58558C1

SUPPRESSOR

- spark plug

1шт.

8

58559C1

SUPPRESSOR

- distributor

1шт.

9

128817C1

BRUSH, COMMUTATOR

BRUSH - sensor cleaning

1шт.

10

819972C91

SENSOR

KIT - granular shaft sensor

1шт.

11

818367C91

SENSOR

ASSEMBLY - shaft rotation

1шт.

58556C1

CABLE TIE

STRAP - retaining, 14 inch long

4шт.

261-1448

SELF-TAP SCREW,Hex Hd, #8 x 1/2"

SCREW - self-tapping, pan head Phillips, No. 8 x 1/2 inch

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

12

818368C91

MAGNET

- feed shaft

1шт.

25629R1

SCREW - slotted pan head, No. 4 x 1/4 inch

2шт.

492-11004

LOCK WASHER,#4

Washer, Lock, #4

2шт.

225-14104

NUT,#4-40

2шт.

13

818369C91

BRACKET

- sensor feed shaft

1шт.

463-1086

SCREW,Hex Hd, #8-32 x 3/8"

- machine, hex, No. 8 x 3/8 inch

2шт.

495-21019

WASHER,#8

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

225-14108

NUT,#8-32

- hex, No. 8

2шт.

14

819974C91

HARNESS

- monitor, 12 contact plug (First drill wiring)

1шт.

15

58557C1

ELECTRICAL WIRE

WIRE - shortening

1шт.

16

58555C1

FASTENER

STRAP - retaining, 7 inch long

1шт.

17

58556C1

CABLE TIE

STRAP - retaining, 14 inch long

1шт.

18

128813C1

CONNECTOR,ELECTRIC

CONNECTOR - male connection plug

1шт.

14

819975C91

HARNESS

- monitor (Second and third drill wiring)

1шт.

14

819977C91

HARNESS

- monitor (Fourth drill wiring)

1шт.

19

819971C92

SENSOR

- seed

1шт.

58555C1

FASTENER

STRAP - retaining, 7 inch long

2шт.

58556C1

CABLE TIE

STRAP - retaining, 14 inch long

1шт.

20

841109C1

SHIELD

- lamp

1шт.

21

819973C1

CABLE

- adaptor (Used to convert cyclometer II consol to grain drill seed flow system, no longer available)

1шт.
