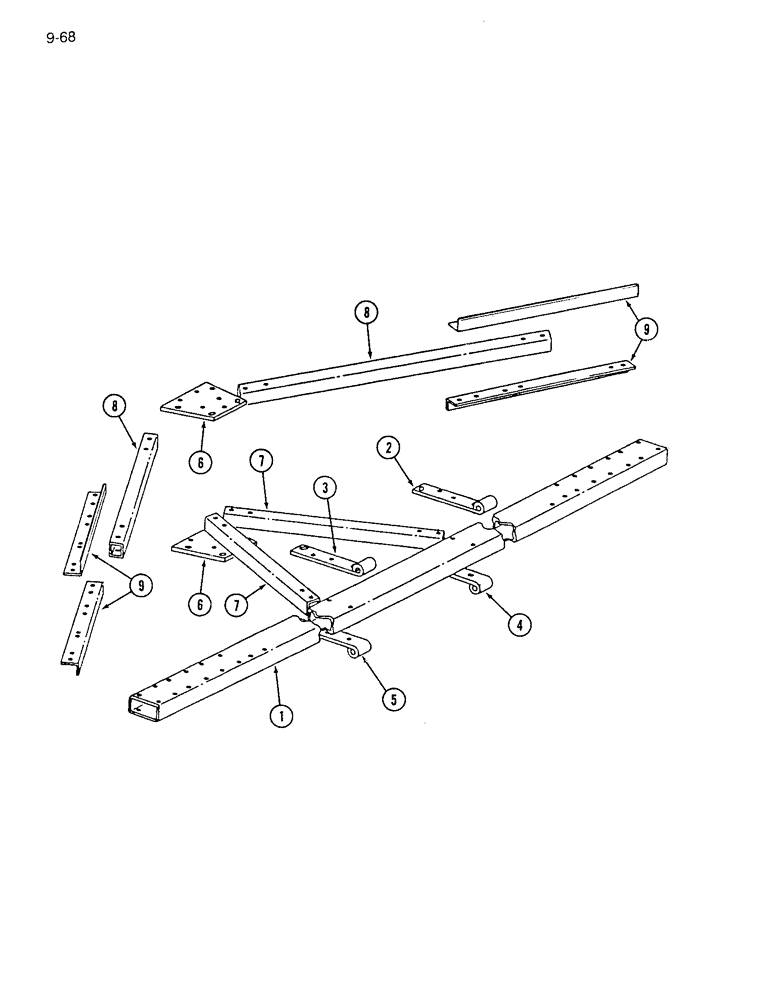

Запчасти Case IH 7200 (9-068) - CENTER HITCH AND STABILIZER - TWO DRILL, MACHINES BUILT 1985 (09) - CHASSIS/ATTACHMENTS

1

819007C2

TUBE,180.4" Length

- center hitch

1шт.

2

819012C1

SUPPORT

- hitch hinge upper left

1шт.

3

819011C1

SUPPORT

- hitch hinge upper right

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

4

819011C1

SUPPORT

- hitch hinge lower left

1шт.

5

819012C1

SUPPORT

- hitch hinge lower right

1шт.

6

819009C1

PLATE

- hitch stabilizer rear

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

7

819016C1

TUBE,30.46" Length

- hitch stabilizer center

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

8

819017C1

TUBE,60.2" Length

- hitch stabilizer outer

2шт.

9

819008C1

ANGLE

BAR - outer tube support

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.
