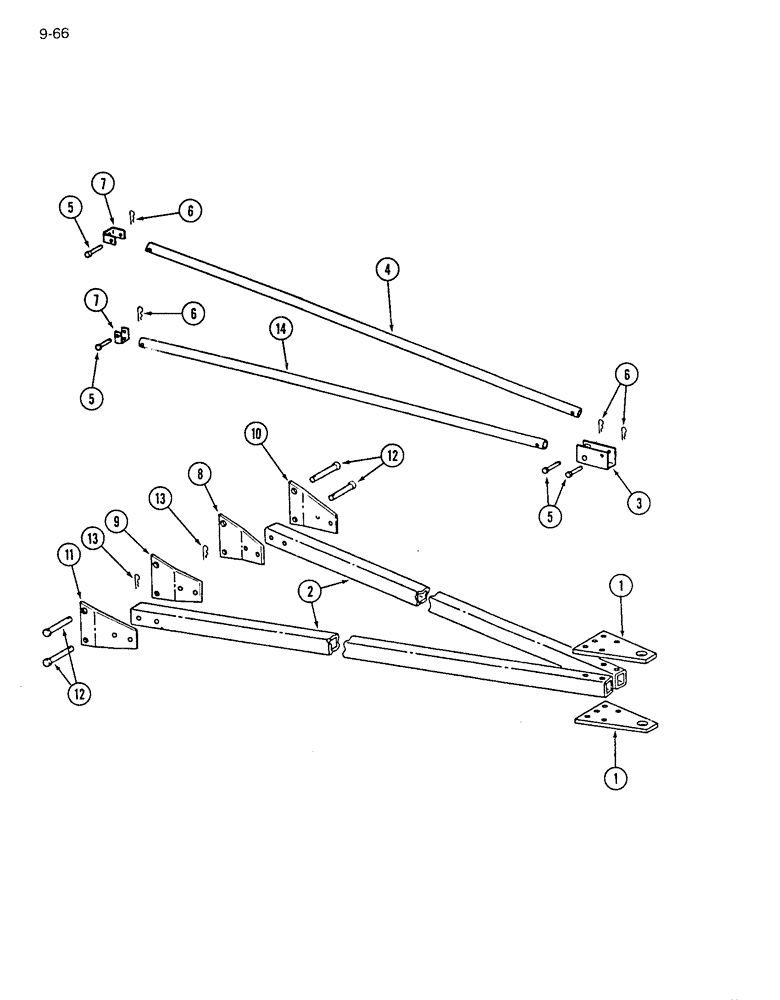

Запчасти Case IH 7200 (9-066) - FRONT HITCH - TWO DRILL, MACHINES BUILT 1985 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

819001C1

PLATE

- hitch front

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

2

819013C2

TUBE,56.55" Length

- hitch front

2шт.

3

819018C2

CHANNEL

- transport tube support front

1шт.

4

1279788C1

SUPPORT TUBE,26.7 mm OD, 1556 mm Length

TUBE - hitch transport support, long

1шт.

5

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

4шт.

6

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair

4шт.

7

819010C1

YOKE

- tube support

2шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

8

819002C1

PLATE

- hitch hinge left inner

1шт.

9

819003C1

PLATE

- hitch hinge right inner

1шт.

10

819004C1

PLATE

- hitch hinge left outer

1шт.

11

819005C1

PLATE

- hitch hinge right outer

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

12

Q3795

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch

4шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

4шт.

13

471194R1

AXLE PIN

PIN - cotter

2шт.

14

819668C1

TUBE

- hitch transport support, short

1шт.
