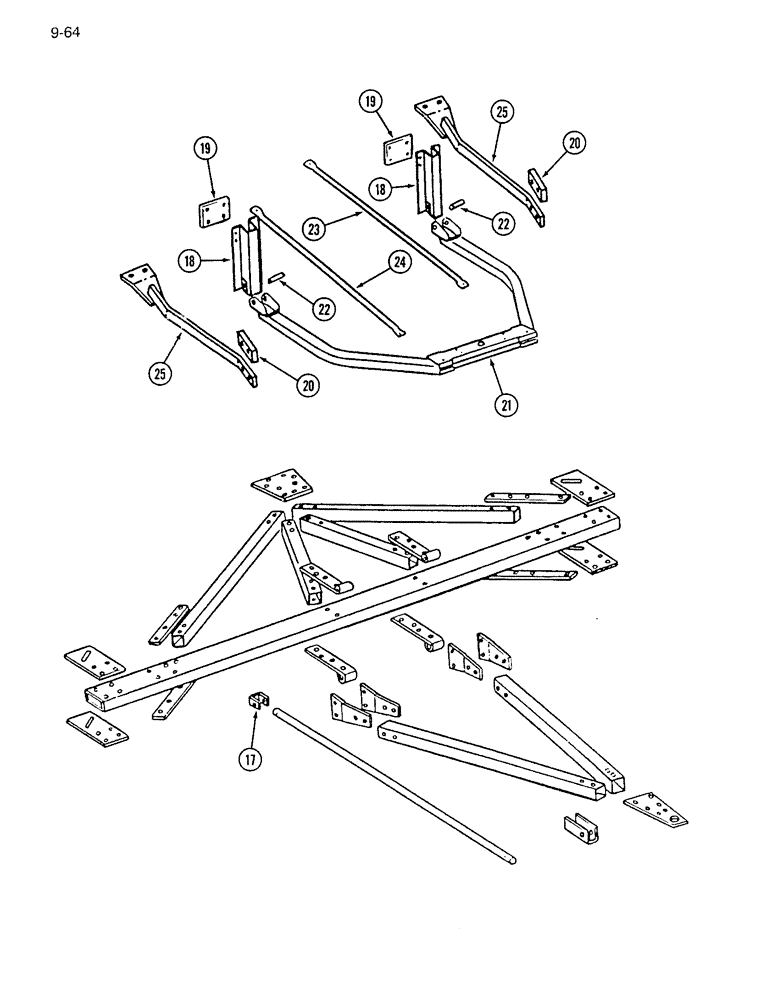

Запчасти Case IH 7200 (9-064) - HEAVY DUTY HITCH - TWO DRILL, MACHINES BUILT 1980 THROUGH (09) - CHASSIS/ATTACHMENTS

17

819010C1

YOKE

- tube support (Continued from previous page)

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

18

817029C2

SUPPORT

ASSEMBLY - hitch

4шт.

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

16шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

16шт.

19

817357C1

BAR

- support backing

8шт.

20

818133C1

BAR

- support filler (Used only with brace assembly 818130C1)

4шт.

20

1279477C1

BAR

- support spacer, 3/4 inch thick

4шт.

21

818366C2

TRAILER HITCH

HITCH ASSEMBLY - basic (See Page 9-49)

2шт.

22

818251C1

PIN

- hitch pivot channel

2шт.

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

2шт.

23

818383C2

BRACE

- hitch left, 48-29/32 inch

2шт.

24

818384C2

BRACE

- hitch left, 48-29/32 inch

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

8шт.

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch

4шт.

25

1279475C1

BRACE

ASSEMBLY - hitch support (Replaces brace assembly 818130C1 by also ordering, 1279477C1 bar)

4шт.

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

8шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

8шт.
