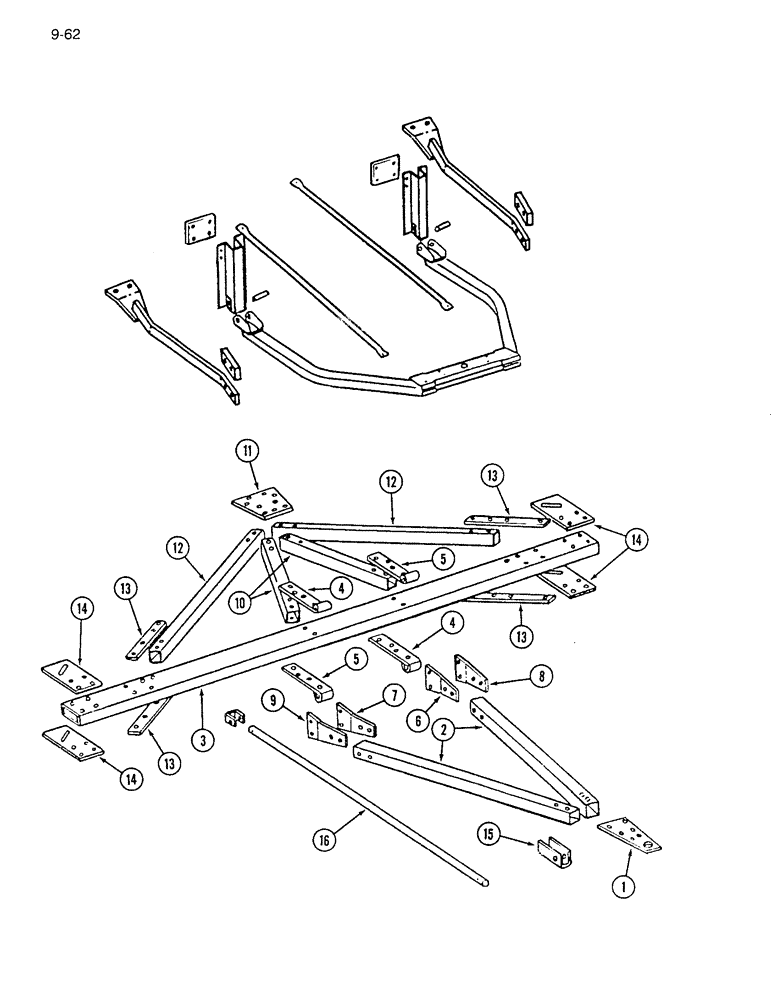

Запчасти Case IH 7200 (9-062) - HEAVY DUTY HITCH - TWO DRILL, MACHINES BUILT 1980 THROUGH (09) - CHASSIS/ATTACHMENTS

1

819001C1

PLATE

- hitch front

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

2

819013C2

TUBE,56.55" Length

- hitch front

2шт.

3

819007C2

TUBE,180.4" Length

- hitch cross

1шт.

4

819011C1

SUPPORT

- hitch hinge, left

2шт.

5

819012C1

SUPPORT

- hitch hinge, right

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

6

819002C1

PLATE

- hitch hinge, left inner

1шт.

7

819003C1

PLATE

- hitch hinge, right inner

1шт.

8

819004C1

PLATE

- hitch hinge, left outer

1шт.

9

819005C1

PLATE

- hitch hinge, right outer

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

Q3795

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

1978739C1

PIN

- cotter

2шт.

10

819016C1

TUBE,30.46" Length

- hitch stabilizer, center

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

11

819009C1

PLATE

- hitch stabilizer rear

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

8шт.

12

819017C1

TUBE,60.2" Length

- hitch stabilizer outer

2шт.

13

819008C1

ANGLE

BAR - outer tube support

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

14

819019C1

BAR

- drill hitch

4шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch

2шт.

425-1214

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC

2шт.

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch

4шт.

15

819018C2

CHANNEL

- transport tube support front

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

819022C1

TUBE

- hitch transport support

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - quick attachable cotter

2шт.
