(9-060) - REAR CORNER BUMPER BRACKET, MACHINES BUILT 1985 AND AFTER

Запчасти Case IH 7200 (9-060) - REAR CORNER BUMPER BRACKET, MACHINES BUILT 1985 AND AFTER (09) - CHASSIS/ATTACHMENTS

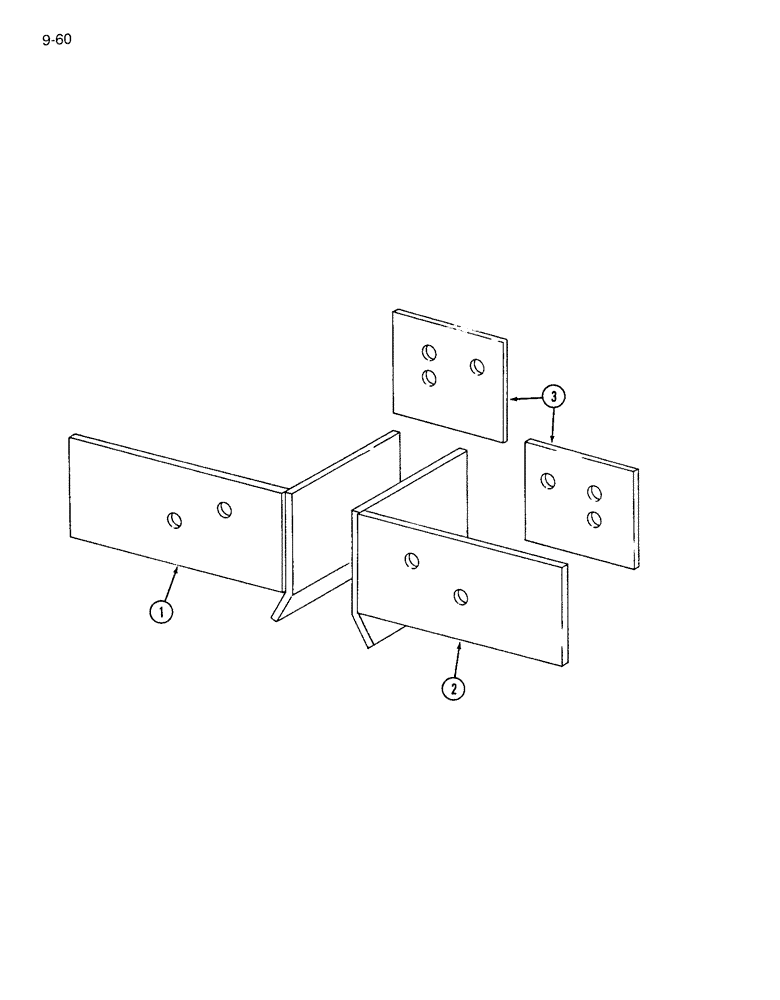

Схема запчастей Case IH 7200 - (9-060) - REAR CORNER BUMPER BRACKET, MACHINES BUILT 1985 AND AFTER (09) - CHASSIS/ATTACHMENTS
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1279000C1

BRACKET

- rear corner bumper, left

1шт.

2

1279001C1

BRACKET

- rear corner bumper, right

1шт.

3

819753C2

BAR

PLATE - bracket spacer

4шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.
