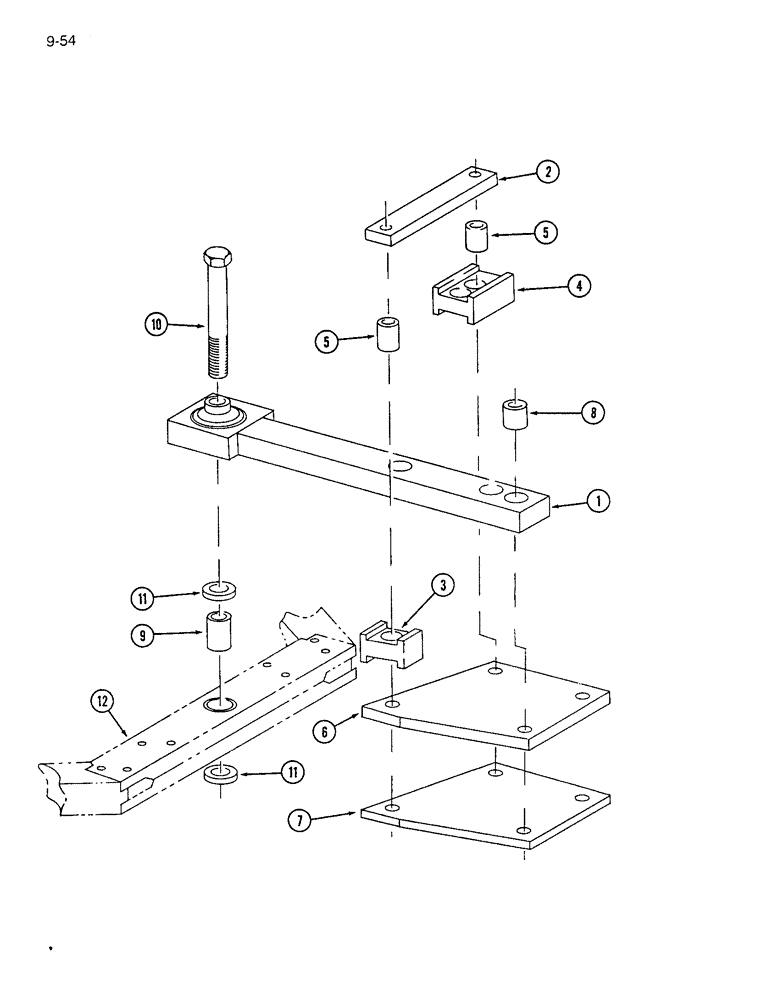

Запчасти Case IH 7200 (9-054) - HITCH LINKS - FOUR DRILL - INNER, MACHINES BUILT 1985 AND (09) - CHASSIS/ATTACHMENTS

1

1279485C1

LINK

- hitch

1шт.

2

1279489C1

BAR

- link guide, inner

1шт.

3

1279491C1

BLOCK

- stop

1шт.

4

1279493C1

BLOCK

- stop

1шт.

5

1279490C1

SPACER

- stop block, 41/64 x 7/8 x 1-5/16 inch

2шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

2шт.

6

1279488C1

PLATE

- upper hitch, inner

1шт.

7

1279487C1

PLATE

- lower hitch, inner

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

8

1279492C1

SPACER

- pivot, 41/64 x 1-1/8 x 1-5/16 inch

1шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

- flat, 21/32 x 2 x 7/64 inch

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

1шт.

9

1279058C1

SPACER

- hitch pivot, 29/32 x 1-1/4 x 2-7/64 inch

1шт.

10

1279548C1

BOLT,Hex, 7/8" - 9 x 6 1/2", Gr 8, Drilled

- hex, 7/8 inch hitch ball point

1шт.

425-1214

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

11

1279868C1

WASHER

- flat, 29/32 x 2 x 7/32 inch

2шт.

12

REF

INSTRUCTION

HITCH ASSEMBLY - basic (See Page 9-49)

1шт.
