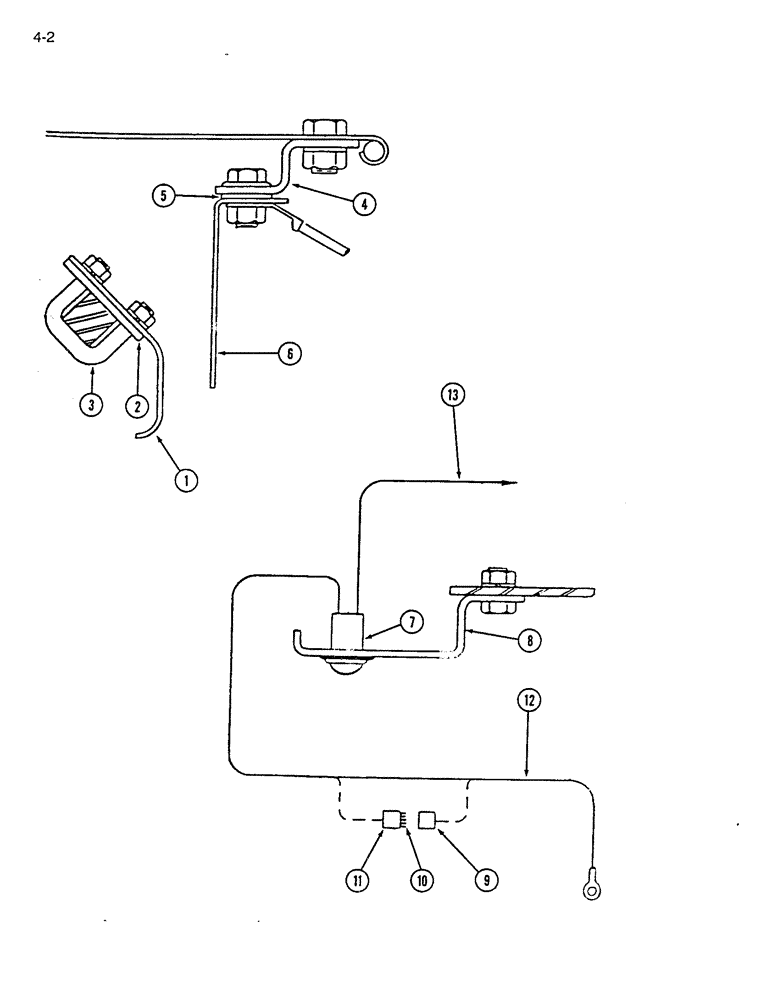

Запчасти Case IH 7200 (4-02) - FEEDSHAFT ROTATION INDICATOR (04) - ELECTRICAL SYSTEMS

1

816791C1

CLIP

- indicator retaining

1шт.

2

816792C1

STRAP

BRACKET - indicator retaining

1шт.

3

11261R

U-BOLT

- 1/4 inch NC, indicator clip (On feedshaft)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

4

816789C1

BRACKET

- indicator contact

1шт.

5

117960

GROMMET,5/16" ID x .719" x .188"

- 5/16 x 23/32 x 7/16 inch

2шт.

6

816790C1

ANGLE

BRACKET - indicator contact

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

676922R91

LAMP

ASSEMBLY - indicator

1шт.

8

816788C1

PANEL

- indicator lamp

1шт.

816848C1

PLUG

- panel filler

5шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

9

405002C1

MULTIPOLE CONNECTOR,Male, 7 Pin

CONNECTOR - wire

1шт.

10

892136C1

ELEC CONNECTOR,Female

CONNECTOR - wire

1шт.

11

188395R1

WIRE CONNECTOR,Male

CONNECTOR - wire

1шт.

12

NSS

NOT SOLD SEPARAT

WIRE - indicator lamp (Order 676922R91 lamp assembly)

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - indicator lamp (Order 676922R91 lamp assembly)

1шт.
