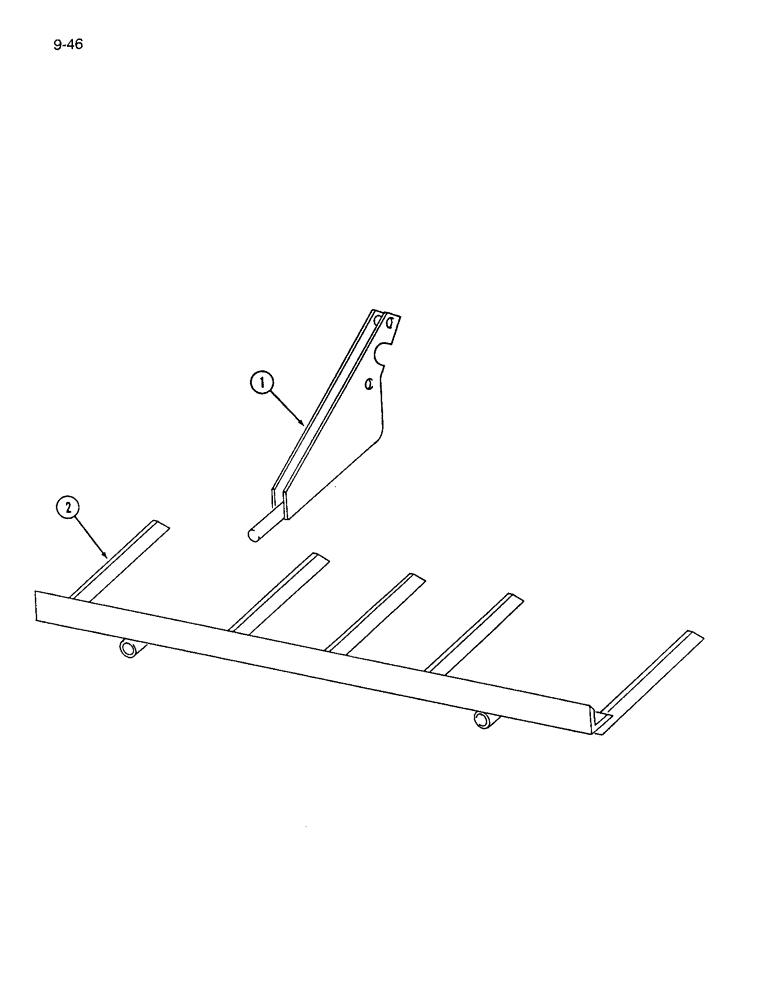

Запчасти Case IH 7200 (9-046) - STONE KICKER FRAME (09) - CHASSIS/ATTACHMENTS

1

816620C2

SUPPORT

- stone kicker frame

6шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

6шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

6шт.

2

816631C2

FRAME

ASSEMBLY - stone kicker

3шт.
