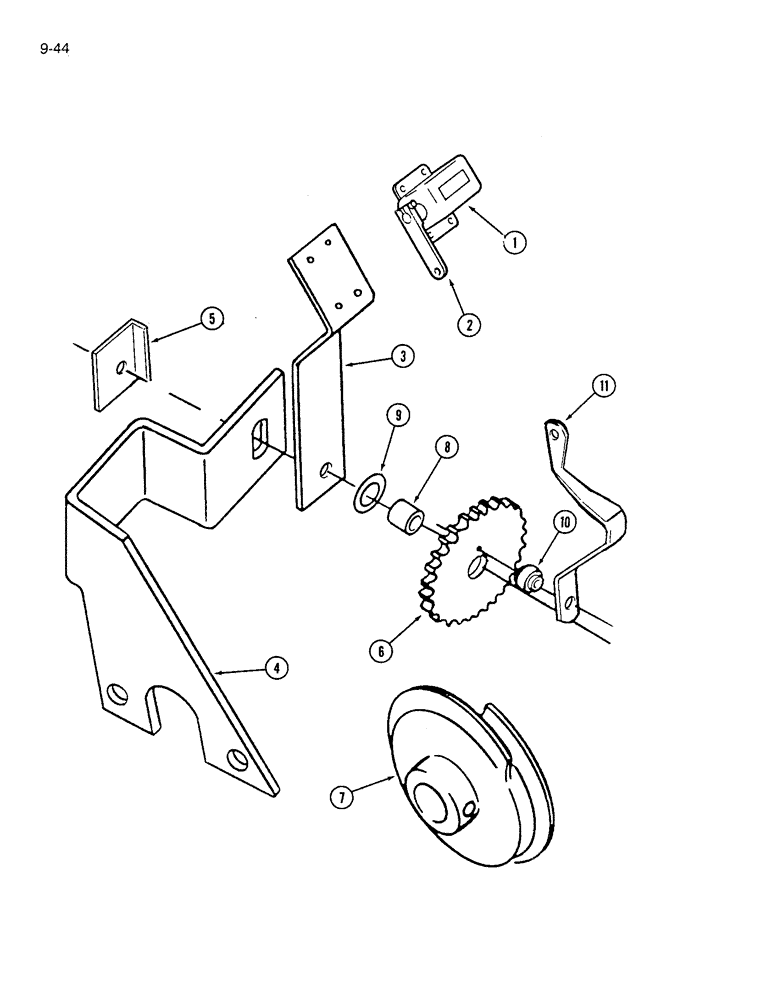

Запчасти Case IH 7200 (9-044) - DIGITAL LAND MEASURE (09) - CHASSIS/ATTACHMENTS

1

1995608C1

COUNTER

- acreage (Replaces 609535R91)

1шт.

2

1995748C1

ARM

ASSEMBLY - counter, with screw (Replaces 816878C1)

1шт.

3

818047C1

SUPPORT

- counter

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

- brass, 1/8 x 7/16 inch

4шт.

4

817552C1

BRACKET

- counter gear

1шт.

5

818045C1

SUPPORT

- counter gear

1шт.

6

816099C1

GEAR

- counter, 22 tooth

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

7

818050C1

GEAR

- acreage counter worm

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

8

209381H1

SPACER

- gear

1шт.

9

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

10

609534R2

SPACER

- counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

- slotted round head machine, No. 10-24 x 1-1/4 inch

1шт.

225-14110

NUT,#10-24

2шт.

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

- flat, 13/64 x 1/2 x 1/16 inch

1шт.

11

598970R2

SPRING

- counter

1шт.

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

1шт.
