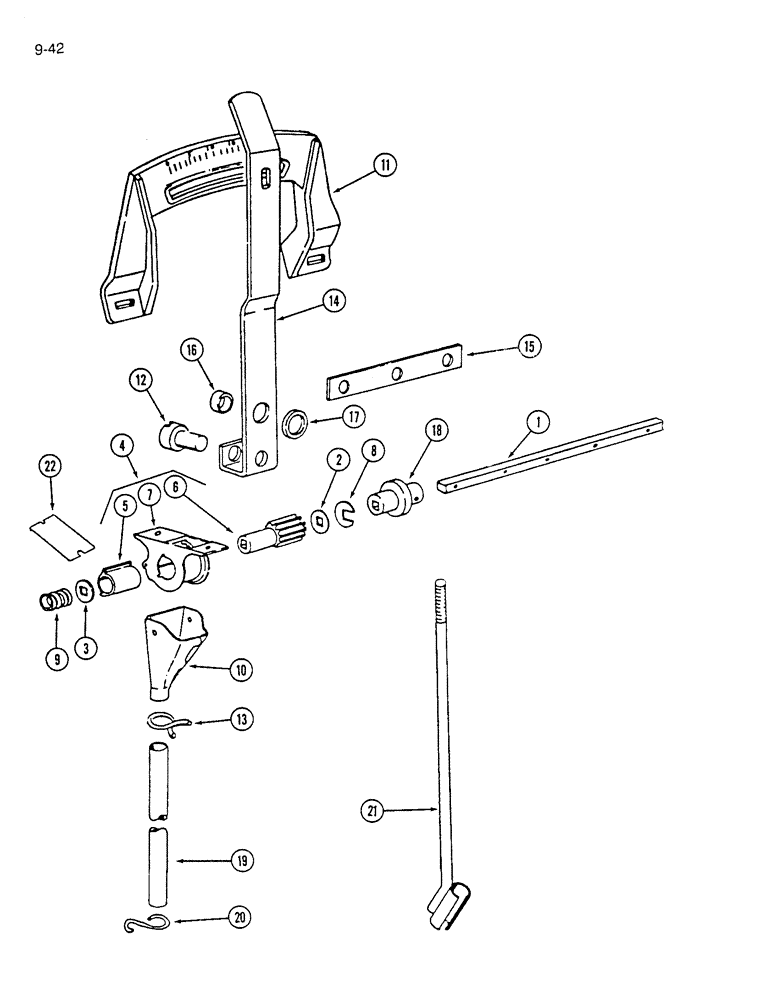

Запчасти Case IH 7200 (9-042) - GRASS SEED FEED MECHANISM (09) - CHASSIS/ATTACHMENTS

1

816335C2

BAR

- feed shaft

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

48шт.

2

498-81000

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

- square hole, 11/32 x 3/4 x 1/64 inch

1шт.

3

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 1/16 inch

24шт.

4

600924R92

CUP ASSY.

CUP ASSEMBLY - grass seed

24шт.

5

600923R2

BLOCK

CUP - feed cut-off

24шт.

6

601463R1

FINGER ASSY.

ROLL - feed

24шт.

7

615750R92

SUPPORT ASSY.

CUP ASSEMBLY - feed

24шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch

48шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

48шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

48шт.

8

N32109

WASHER

- slotted, 11/32 x 3/4 x 1/64 inch

2шт.

9

N32176

SPRING

- feed roll

24шт.

10

603817R1

TUBE

TOP - grass seed tube

24шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

24шт.

11

815627C1

INDICATOR

- grass box feed

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

12

815630C1

PIN,25.4mm OD x 42.16mm L

- feed shifter

2шт.

13

603699R2

CLAMP

- seed tube top

24шт.

14

815628C1

LEVER

- shifter

2шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

142745

NUT, WING

NUT - wing, 5/16 inch NC

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

15

815629C1

BAR

BRACE - reinforcing

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

16

95944C1

BUSHING

SPACER - lever pivot

2шт.

17

151401C1

BELLEVILLE WASHER

WASHER - Belleville

2шт.

18

819227C1

SLEEVE

- feed shifter

2шт.

104056

RIVET

- 1/8 x 7/8 inch

2шт.

19

TUBE - seed (Use 74-13/16 inch from 25 foot roll 997790R1)

24шт.

997790R1

HOSE

TUBE - bulk roll, 25 foot

1шт.

20

603882R1

HOOK

- seed tube lower

24шт.

21

605088R11

HOLDER

- band seed tube

24шт.

425-106

NUT,3/8"-16, Cl 5

48шт.

22

818183C1

PROTECTIVE COVER

BAR - feeder cover

24шт.
