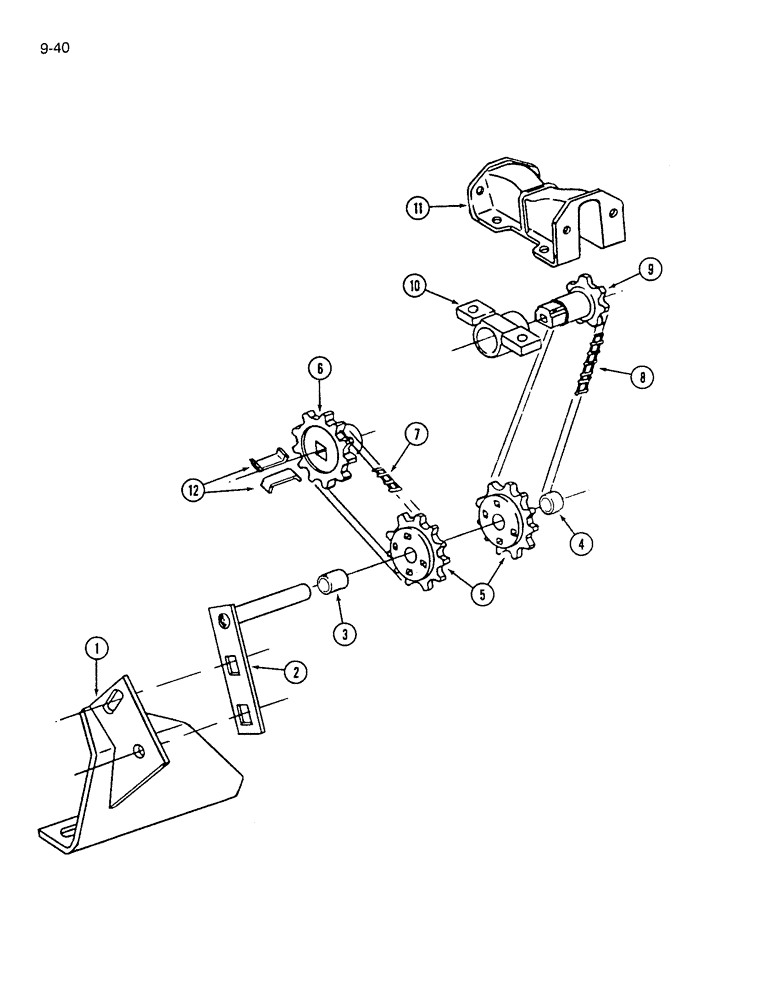

Запчасти Case IH 7200 (9-040) - GRASS SEED DRIVE (09) - CHASSIS/ATTACHMENTS

1

818292C1

SUPPORT

ASSEMBLY - chain tightener bracket

2шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

2

816340C2

BRACKET

ASSEMBLY - drive chain tightener

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

3

PO15237

SPACER

- tightener sprocket, inner

2шт.

4

590750R1

SPACER

- tightener sprocket, outer

2шт.

5

819949C1

DRIVE SPROCKET

SPROCKET - chain tightener

4шт.

433-432

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2", Gr 5

BOLT - round head square neck, 1/4 x 2 inch

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

1978907C1

DRIVE SPROCKET

SPROCKET - grass seed drive, 10 tooth (Replaces 815324C1)

2шт.

28793R1

SNAP RING,1.312", Int, #131

Ring, Snap, 1.312", Int, #131

2шт.

7

CHAIN - grass seed drive (Use (45) links from 10 foot roll CS25)

2шт.

8

CHAIN - grass seed driven (Use (43) links from 10 foot roll CS25)

2шт.

9

NA1475

DRIVE SPROCKET

SPROCKET - grass feed driven, 7 tooth

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

816533C1

BRACKET

BEARING - sprocket

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

816532C1

GUARD

- drive chain

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

12

815803C1

CLIP

- sprocket retaining (Used only with 815324C1)

2шт.
