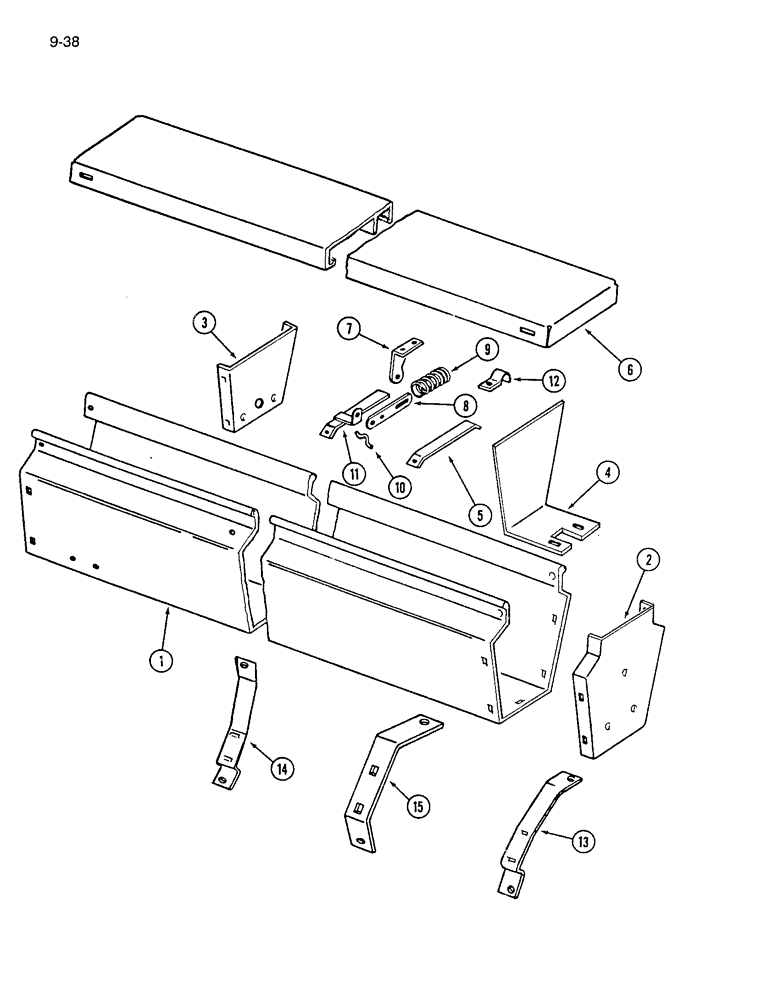

Запчасти Case IH 7200 (9-038) - GRASS SEED HOPPER UNIT (09) - CHASSIS/ATTACHMENTS

1

818291C1

HOPPER

- grass seed

1шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

10шт.

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

8шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

26шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

26шт.

2

819060C2

PANEL, SIDE

PANEL - hopper end

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch

4шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

6шт.

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

23323H

SPACER,1/4" Pipe x 1/2"

- hopper

4шт.

3

815597C1

PLATE

BAFFLE - hopper

4шт.

23323H

SPACER,1/4" Pipe x 1/2"

- hopper

8шт.

4

815598C1

BAFFLE

- grass seed

7шт.

5

815599C1

BRACKET

BRACE - hopper

4шт.

6

816861C1

COVER

ASSEMBLY - hopper

1шт.

7

815615C1

SUPPORT

BRACKET - cover spring

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

N32052

BAR

- cover spring plunger

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

1шт.

9

6628

SPRING

- plunger

1шт.

10

N32114

LINCH PIN

LOCK - spring

1шт.

11

815616C1

BRACKET

- cover

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

1шт.

12

815618C1

CLAMP

- cover hinge

7шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

818267C1

SUPPORT

- hopper end, left

1шт.

14

818268C1

SUPPORT

- hopper end, right

1шт.

15

816339C1

BRACE

SUPPORT - hopper, intermediate

4шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.
