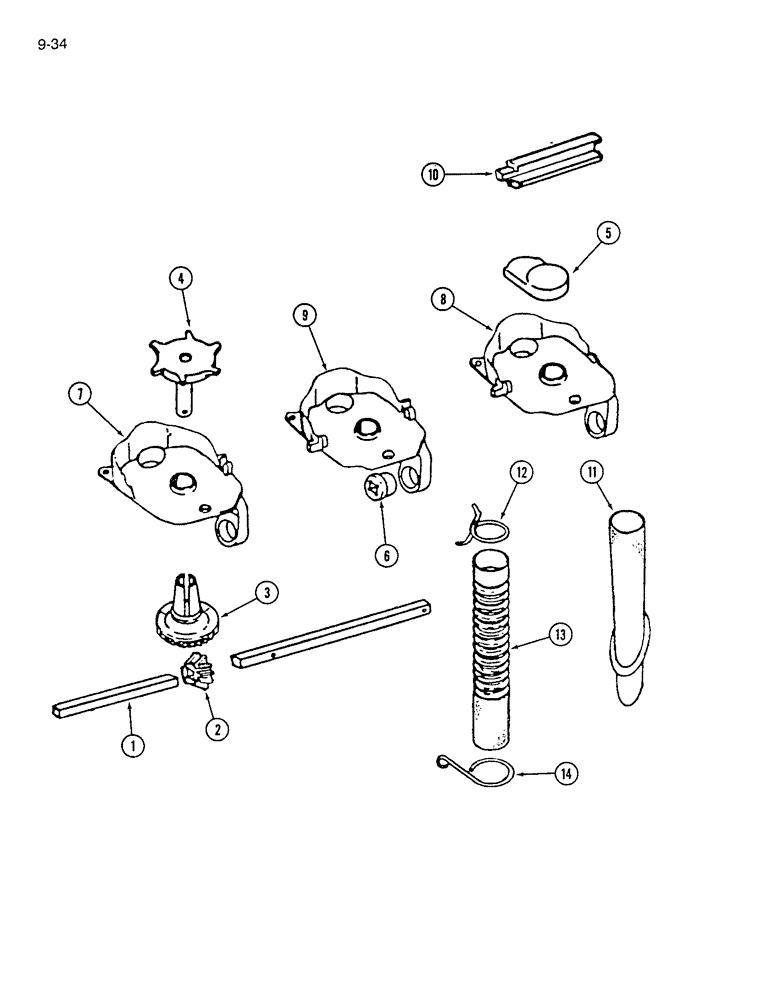

Запчасти Case IH 7200 (9-034) - FERTILIZER FEED MECHANISM (09) - CHASSIS/ATTACHMENTS

1

816228C1

BAR

- fertilizer feed shaft (Order 816228C1 bar and cut to length of 79-1/4 inch)

2шт.

112050

PIN,4.76mm OD x 22.23mm L

- square end straight, 3/16 x 7/8 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

2

603463R2

GEAR

- bevel pinion, 12 tooth

24шт.

3

F282C

GEAR

- feed shaft bevel

24шт.

4

602554R11

DRIVE SPROCKET

WHEEL ASSEMBLY - star feed

24шт.

N62414

PIN,3.96mm OD x 28mm L

- shear

1шт.

5

603593R1

BLOCK

- fertilizer feed shut-off

24шт.

6

603462R1

TRUNNION

TRUNION - bevel pinion

24шт.

7

603451R2

PLATE

- bottom end, left

2шт.

8

603452R2

PLATE

- bottom end, right

2шт.

9

603453R2

PLATE

- bottom intermediate

20шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

48шт.

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- machine, flat head slotted, 1/4 NC x 5/8 inch

24шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

72шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

72шт.

10

603457R1

SPACER

- bottom plate

22шт.

11

607289R2

TUBE,1.25" OD, 7" Length

- combined delivery, fertilizer

24шт.

12

603591R1

SPRING

- fertilizer tube, upper (For seperate delivery tube)

24шт.

13

817229C1

TUBE

- seperate delivery, fertilizer

24шт.

14

1268314C1

CLIP

CLAMP - fertilizer tube, center, 19/32 inch mounting hole (For seperate delivery tube)

24шт.

14

603592R1

SPRING CLIP

CLAMP - fertilizer tube, lower, 13/32 inch mounting hole (For seperate delivery tube)

24шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

24шт.

425-106

NUT,3/8"-16, Cl 5

24шт.

492-11038

LOCK WASHER,3/8"

24шт.
