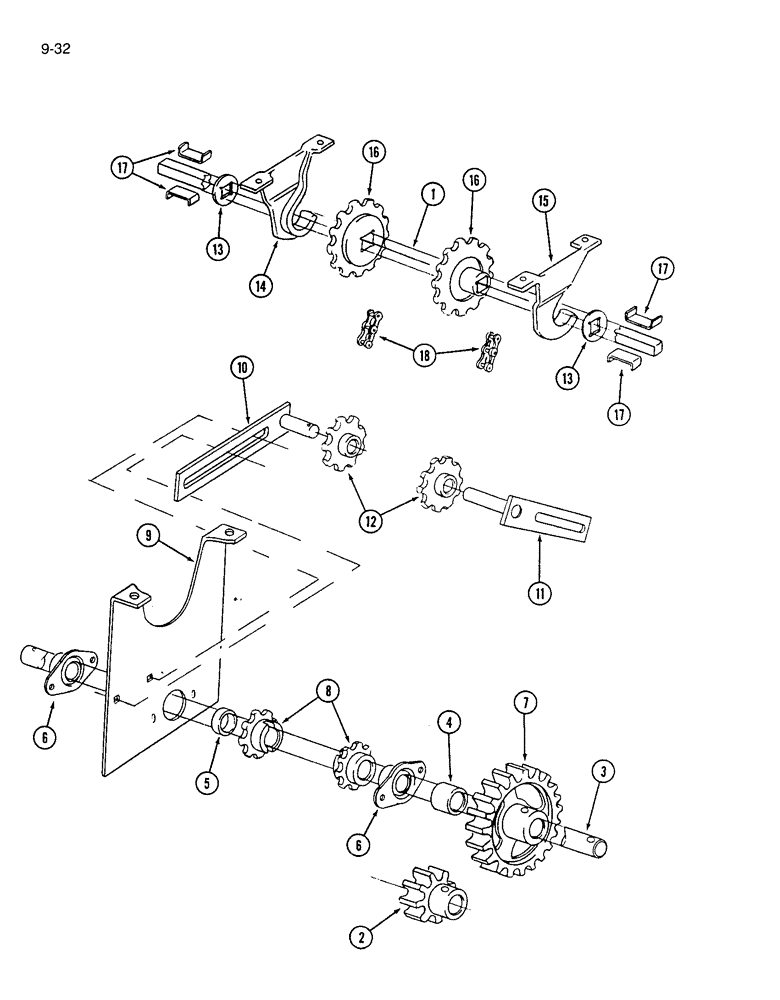

Запчасти Case IH 7200 (9-032) - FERTILIZER DRIVE (09) - CHASSIS/ATTACHMENTS

1

816228C1

BAR

- fertilizer feed shaft (Order 816228C1 bar and cut to length of 79-1/4 inch)

2шт.

112050

PIN,4.76mm OD x 22.23mm L

- square end straight, 3/16 x 7/8 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

2

817473C1

GEAR

- fertilizer drive, 13 tooth

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

3

817504C1

ROD

- fertilizer drive, shaft

1шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

4

817752C1

SPACER

- fertilizer drive shaft

1шт.

5

817734C1

SPACER

- fertilizer drive shaft

1шт.

6

596943R92

BEARING ASSY,25.45mm ID

BEARING ASSEMBLY - clutch extension shaft

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

7

817474C1

GEAR

- fertilizer drive shaft, 29 tooth

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

8

840938C1

SPROCKET ASSY.

SPROCKET - fertilizer drive shaft, 7 tooth

2шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

2шт.

9

817495C1

SUPPORT

- fertilizer drive idler bracket

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

10

843192C1

BRACKET

ASSEMBLY - fertilizer drive tightener

1шт.

11

818152C1

BRACKET

ASSEMBLY - fertilizer drive chain tightener

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

12

819458C1

DRIVE SPROCKET

SPROCKET - fertilizer drive tightener, 8 tooth

2шт.

13

569875R1

SQ HOLE WASHER

- square hole, 25/32 x 1-3/4 x 3/64 inch

2шт.

14

816277C1

HANGER

- fertilizer drive sprocket, right

1шт.

15

816276C1

HANGER

- fertilizer driven sprocket, left

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

817484C1

SPROCKET ASSY.

SPROCKET - fertilizer feed shaft drive, 13 tooth

2шт.

17

816279C1

CLIP

- sprocket retaining

4шт.

18

CHAIN - fertilizer drive (Quantity of (1) per drive, use 33 links from 10 foot roll 569088R91 and (1) connecting link 457113R91)

1шт.

457113R91

CHAIN LINK

LINK - connecting

1шт.
