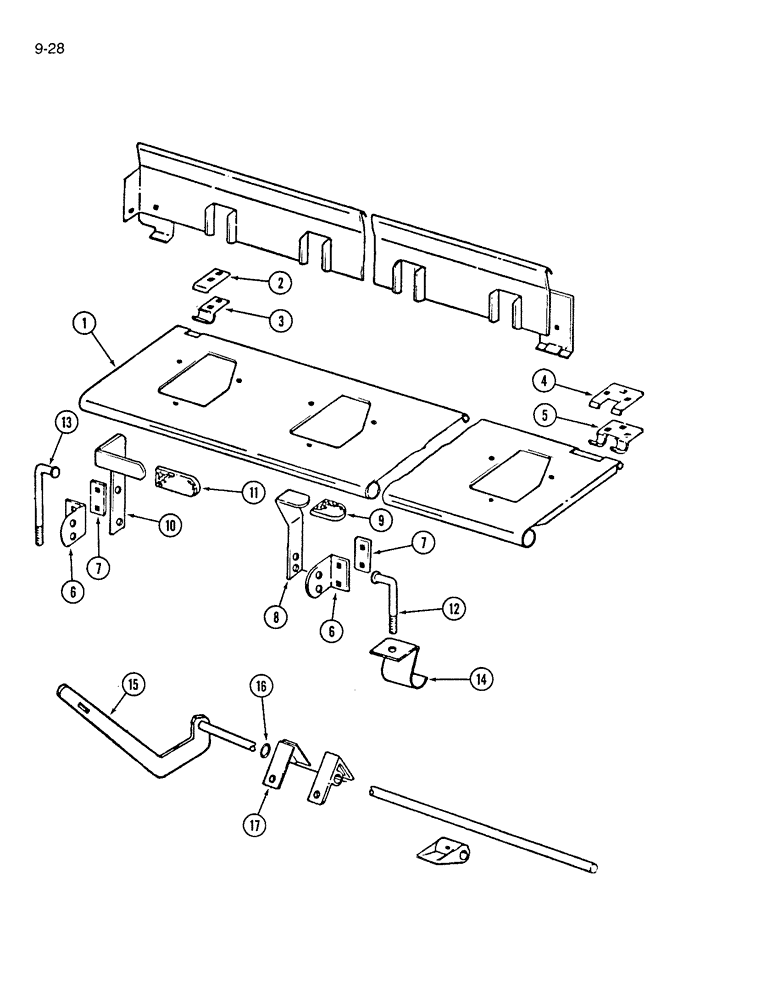

Запчасти Case IH 7200 (9-028) - FERTILIZER DROP BOTTOM (09) - CHASSIS/ATTACHMENTS

1

816217C1

BOTTOM

ASSEMBLY - fertilizer drop, left

1шт.

1

816218C1

BOTTOM

ASSEMBLY - fertilizer drop, right

1шт.

2

604403R1

CLAMP

STOP - drop bottom hinge, intermediate

8шт.

3

604404R2

CLAMP

HINGE - drop bottom, intermediate

8шт.

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - round head square neck, 1/4 NC x 1 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

16шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

4

815373C1

STOP

- drop bottom hinge, end

2шт.

5

815374C1

HINGE

- drop bottom, end

2шт.

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - round head square neck, 1/4 NC x 1 inch

6шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

6

603498R1

ANGLE

- drop bottom lever

10шт.

7

603587R1

BAR

- lever angle reinforcing

10шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

20шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

20шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

8

815377C1

LEVER

- drop bottom, short

8шт.

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8 x 9/16 inch

8шт.

9

815378C1

GRIP

- short lever

8шт.

10

603501R1

LEVER

- drop bottom, long

2шт.

118059

RIVET,FH, 3/8" x 9/16"

- flat head, 3/8 x 9/16 inch

2шт.

11

815379C1

GRIP

- long lever

2шт.

12

603469R1

BOLT,3/8" - 16 x 3.3", Steel

- drop bottom, short

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

13

603470R1

BOLT,3/8" - 16 x 5.1", Steel

- drop bottom, long

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

14

603497R1

CATCH

- drop bottom

10шт.

15

817433C1

ROD

- gate, left

1шт.

15

ROD - gate, right (Order 817537C1 rod and cut to length of 85-9/16 inch)

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

16

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Gate rod -114, 70 Duro, .612" ID x .103" Thk

2шт.

17

607276R2

SUPPORT

BEARING - gate rod

10шт.

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, (Quantity of 1 per gate rod) Short NK, 1/4"-20 x 1/2", G5, Full Thd

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Quantity of 1 per bolt)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Quantity of 1 per bolt) 1/4"

1шт.
