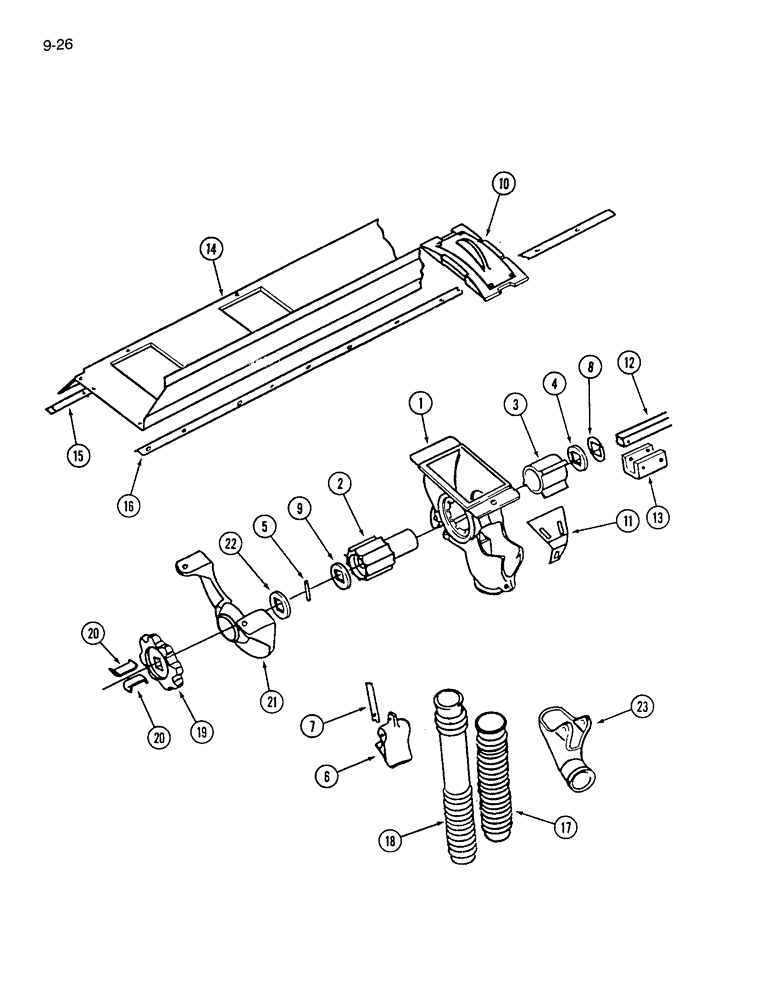

Запчасти Case IH 7200 (9-026) - GRAIN FEED SHAFT (09) - CHASSIS/ATTACHMENTS

603816R93

CUP

ASSEMBLY - feed, Includes: Ref. 1, 2, 3 and 4

24шт.

1

NSS

NOT SOLD SEPARAT

CUP ASSEMBLY - feed

24шт.

Part of feed cup assembly P/N 603816R93

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

48шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

48шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

48шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

1шт.

2

603111R1

ROLLER

SHAFT - fluted roll

24шт.

Part of feed cup assembly P/N 603816R93

1шт.

3

603112R1

BLOCK

- shut off

24шт.

Part of feed cup assembly P/N 603816R93

1шт.

4

602106R1

SQ HOLE WASHER

- square hole, 21/32 x 1-11/64 x 1/64 inch

96шт.

Part of feed cup assembly P/N 603816R93

1шт.

5

603134R1

PIN,4.76mm OD x 29.37mm L

- roll, feed cup

24шт.

6

603108R21

BOTTOM

ASSEMBLY - feed cup dump

24шт.

7

603178R1

LATCH

- dump bottom (Quantity of 1 per feed cup)

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1 rivet used per latch Truss Hd, 3/16" x 3/8"

1шт.

432-1248

COTTER PIN,3/16" x 3"

(Quantity of 1 per bottom) 3/16" x 3"

1шт.

8

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

24шт.

9

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

- feed cup, spring

24шт.

10

818335C1

COVER ASSY

COVER ASSEMBLY - grain feed

24шт.

11

606034R1

GUARD

WINDSHIELD - grain feed cup

24шт.

12

817518C2

BAR

- feedshaft, left

1шт.

12

816132C2

BAR

- feedshaft, right

1шт.

432-1216

COTTER PIN,3/16" x 1"

24шт.

13

816133C1

CHANNEL

- feed shaft coupler

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

14

817314C1

PANEL

- grain bottom, partition

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

31шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

11шт.

425-106

NUT,3/8"-16, Cl 5

42шт.

492-11038

LOCK WASHER,3/8"

42шт.

15

90987C1

BAR

- feed cup spacer, front (Replaces 816979C3)

1шт.

16

90988C1

BAR

- feed cup spacer, rear (Replaces 816143C3)

1шт.

17

606147R2

TUBE,1.25" ID, 1.906" OD, 51, 1.125" Length

- grain seed

8шт.

18

843382C2

PLASTIC-RUBBER TUBE,32 mm OD

TUBE - grain seed, (Extended length, 18-1/2 inch)

9шт.

18

817228C2

TUBE,32 mm ID, 270, 600 mm Length

- grain seed, (Extended length, 22-1/4 inch)

7шт.

19

1978907C1

DRIVE SPROCKET

SPROCKET - grass seed drive, 10 tooth (Replaces 815324C1)

2шт.

28793R1

SNAP RING,1.312", Int, #131

Ring, Snap, 1.312", Int, #131

2шт.

20

815803C1

CLIP

- sprocket retaining (Used only with 815324C1)

2шт.

21

1978908C1

HANGER

- sprocket (Replaces 815499C2)

2шт.

22

N11791

WASHER

- grass seed drive sprocket (Used only with 815324C1)

4шт.

23

818308C1

CHUTE ASSY.

CHUTE - grain tube (At first feed cup right of center)

1шт.
