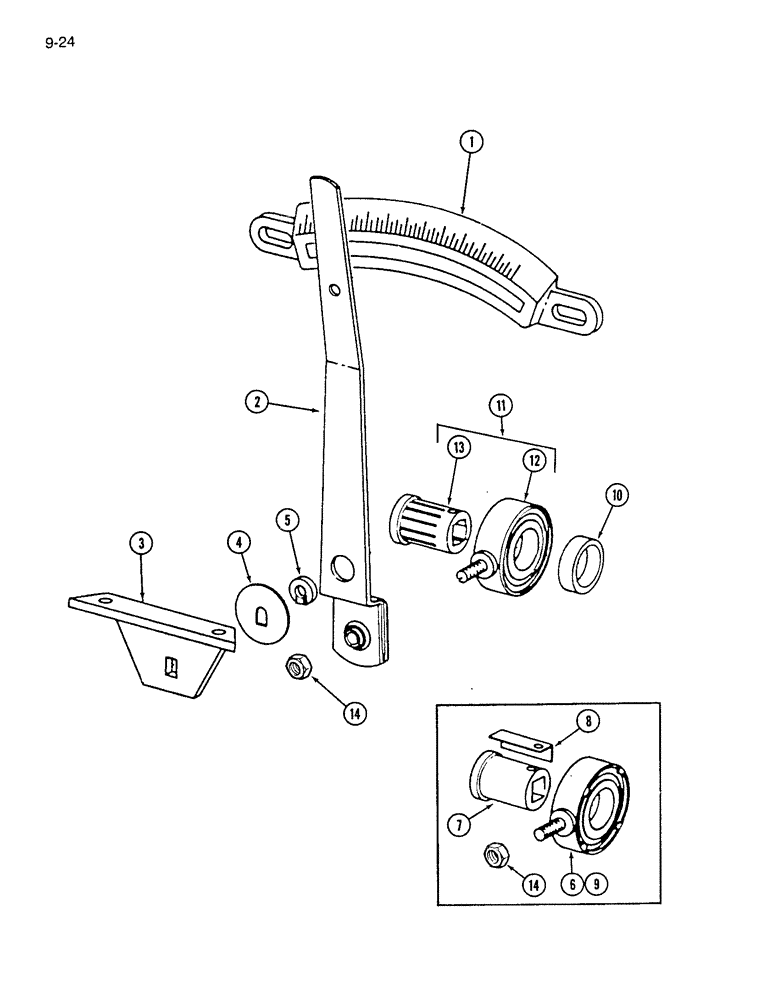

Запчасти Case IH 7200 (9-024) - GRAIN FEED INDICATOR AND SHIFTER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
603127R1
INDICATOR
- grain feed
1шт.
413-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
- hex, 5/16 NC x 1/2 inch
4шт.
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
2шт.
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
6шт.
495-81114
WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk
- flat, 11/32 x 3/4 x 3/64 inch
2шт.
2
815179C1
LEVER
- grain feed shifter
1шт.
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
BOLT - round head square neck, 5/16 NC x 3/4 inch
1шт.
142745
NUT, WING
NUT - wing, 5/16 inch NC
1шт.
3
819361C1
BRACKET
SUPPORT - shifter lever
1шт.
434-516
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5
BOLT - round head square neck, 5/16 NC x 1 inch
1шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - round head square neck, 3/8 NC x 1 inch
2шт.
425-145
JAM NUT,Jam, 5/16"-18, G5
2шт.
495-81114
WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk
- flat, 11/32 x 3/4 x 3/64 inch
2шт.
425-106
NUT,3/8"-16, Cl 5
2шт.
492-11038
LOCK WASHER,3/8"
2шт.
4
819263C1
WASHER
- shifter lever
1шт.
5
819264C1
BUSHING
- shifter stop
1шт.
6
609384R91
THRUST BEARING
ASSEMBLY - feed shifter (Machines built prior to 1984) (Order bearing assembly, 1279927C91 and spacer 609388R1)
1шт.
7
609388R1
SPACER
- shifter bearing
1шт.
19442R1
PIN,3/16" x 1 1/2", Coiled
1шт.
8
816573C1
SHIM
- lever, 0.005 inch (Used only with bearing assembly 609384R91)
1шт.
9
1279927C91
BEARING ASSY
BEARING ASSEMBLY - feed shifter
1шт.
10
609389R1
SPACER
- nylon, bushing
1шт.
11
1279109C91
BEARING ASSY
ASSEMBLY - feed shifter
1шт.
12
616154R92
BEARING, ROLLER, CYL,16 mm
BEARING - feed shifter
1шт.
13
1279145C1
SPACER
- feed shifter bearing
1шт.
19442R1
PIN,3/16" x 1 1/2", Coiled
1шт.
14
9413979
LOCK NUT,3/8"-16, GC
NUT - hex lock, 3/8 inch NC, Grade 8
1шт.
Выбрано товаров: 30
