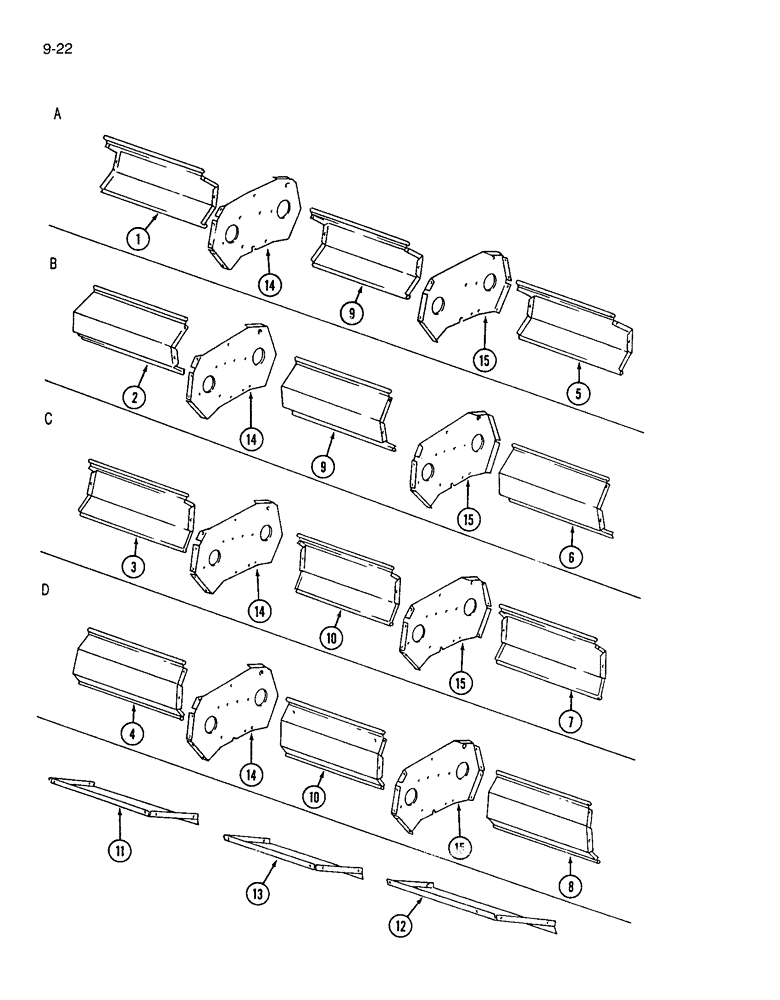

Запчасти Case IH 7200 (9-022) - GRAIN AND FERTILIZER HOPPER UNIT, PARTITION PANELS AND (09) - CHASSIS/ATTACHMENTS

1

816288C1

PANEL

- fertilizer partition, left (See Note A)

1шт.

2

816289C1

PANEL

- fertilizer partition, left (See Note B)

1шт.

3

816814C1

PANEL

- fertilizer partition, left (See Note C)

1шт.

4

816815C1

PANEL

- fertilizer partition, left (See Note D)

1шт.

5

816289C1

PANEL

- fertilizer partition, right (See Note A)

1шт.

6

816288C1

PANEL

- fertilizer partition, right (See Note B)

1шт.

7

816815C1

PANEL

- fertilizer partition, right (See Note C)

1шт.

8

816814C1

PANEL

- fertilizer partition, right (See Note D)

1шт.

9

816290C1

PANEL

- fertilizer partition, center (See Notes A and B)

1шт.

10

816804C1

PANEL

- fertilizer partition, center (See Notes C and D)

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

16шт.

425-106

NUT,3/8"-16, Cl 5

16шт.

492-11038

LOCK WASHER,3/8"

16шт.

11

816080C1

PANEL

- grain partition, left

1шт.

12

816081C1

PANEL

- grain partition, right

1шт.

13

815832C1

PANEL

- grain partition, center

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

23шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

10шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

23шт.

425-106

NUT,3/8"-16, Cl 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

23шт.

492-11038

LOCK WASHER,3/8"

10шт.

14

816072C2

BAFFLE

- hopper, left

1шт.

15

816073C2

BAFFLE

- hopper, right

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

20шт.

425-106

NUT,3/8"-16, Cl 5

20шт.

492-11038

LOCK WASHER,3/8"

20шт.
