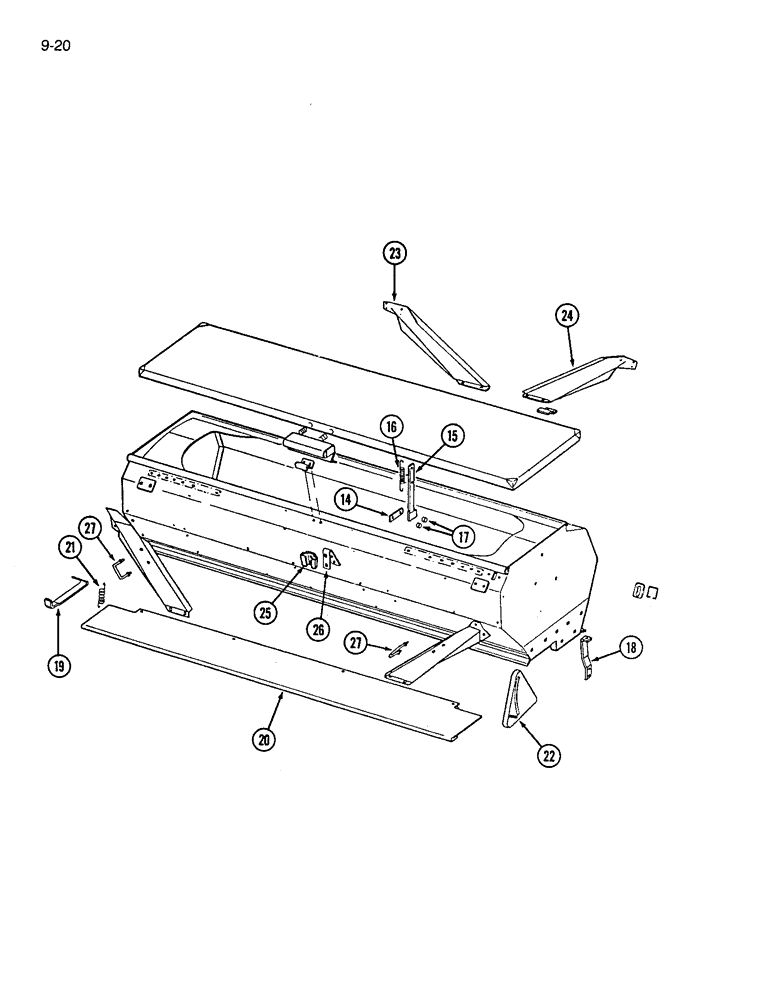

Запчасти Case IH 7200 (9-020) - GRAIN AND FERTILIZER HOPPER UNIT (09) - CHASSIS/ATTACHMENTS

14

815178C1

SPACER

SUPPORT - arm retaining (Continued from previous page)

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

15

815176C1

ARM

- cover hold open

2шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN - headed, 5/16 x 23/32 inch

2шт.

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

16

398304R1

SPRING

- cover return

2шт.

17

594536R1

BUSHING

- retainer bar

4шт.

18

817438C1

SUPPORT

- hopper

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

492-11038

LOCK WASHER,3/8"

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

19

603538R1

BRACKET

BRACE - hopper center

1шт.

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

816206C2

COVER

- fertilizer (Used only when machine is equipped with fertilizer attachment)

1шт.

21

815891C1

SPRING

- fertilizer cover

4шт.

22

817439C1

INDICATOR

- fertilizer, left

1шт.

22

817440C1

INDICATOR

- fertilizer, right

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

23

818108C1

BRACE

- hopper diagonal, left, front

1шт.

24

818109C1

BRACE

- hopper diagonal, right, front

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

25

398976R1

BRACKET

- SMV emblem mounting

1шт.

26

819998C1

SUPPORT

- SMV emblem

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

811627C2

U-BOLT

- footboard stop

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

8шт.
