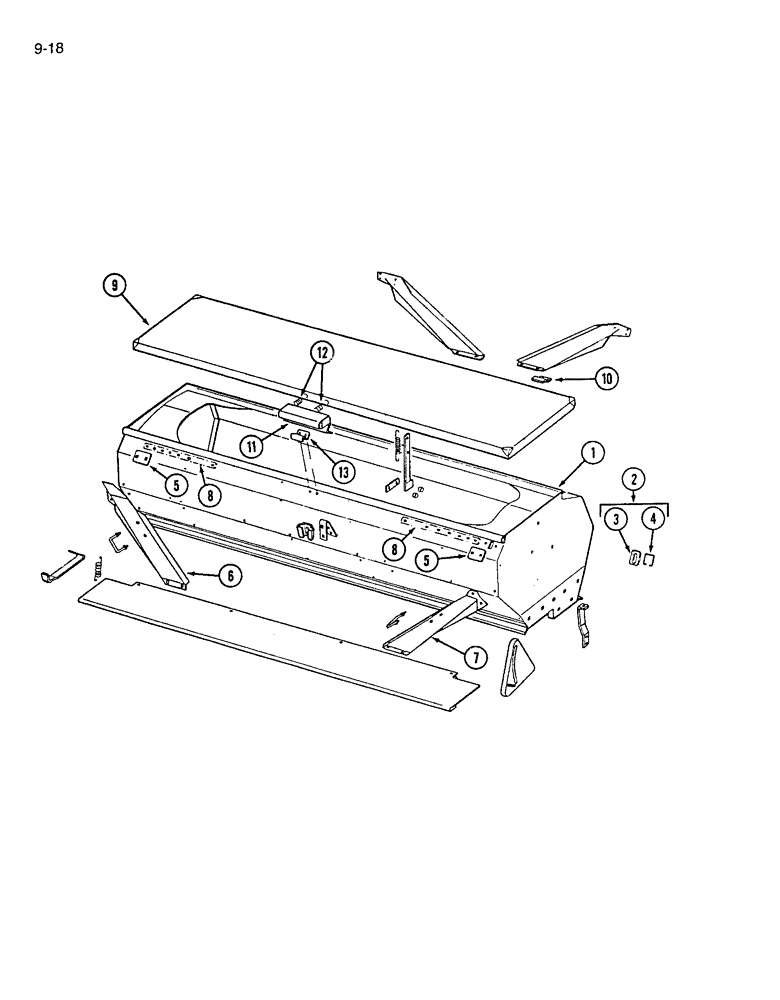

Запчасти Case IH 7200 (9-018) - GRAIN AND FERTILIZER HOPPER UNIT (09) - CHASSIS/ATTACHMENTS

1

819082C93

HOPPER

ASSEMBLY - grain and fertilizer

1шт.

1254170C1

DECAL

- caution (See page 9-153)

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

8шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

2

1986166C1

GLASS

WINDOW ASSEMBLY - seed vision

2шт.

3

NSS

NOT SOLD SEPARAT

WINDOW - seed vision

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - adhesive

1шт.

5

815115C1

PLATE

COVER - fertilizer indicator access hole

2шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

817289C1

BRACE

- hopper, diagonal, rear, left

1шт.

7

817290C1

BRACE

- hopper, diagonal, rear, right

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

4шт.

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

8

816683C1

BAR

- reinforcing

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

14шт.

425-106

NUT,3/8"-16, Cl 5

14шт.

492-11038

LOCK WASHER,3/8"

14шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

14шт.

9

816086C1

COVER

- hopper

1шт.

10

815173C1

HINGE

- cover

7шт.

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- machine, flat head slotted, 1/4 NC x 5/8 inch

14шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

11

815174C1

LATCH

- hopper cover

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

12

N32176

SPRING

- cover latch

2шт.

13

815175C1

CLIP

- latch

1шт.

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
