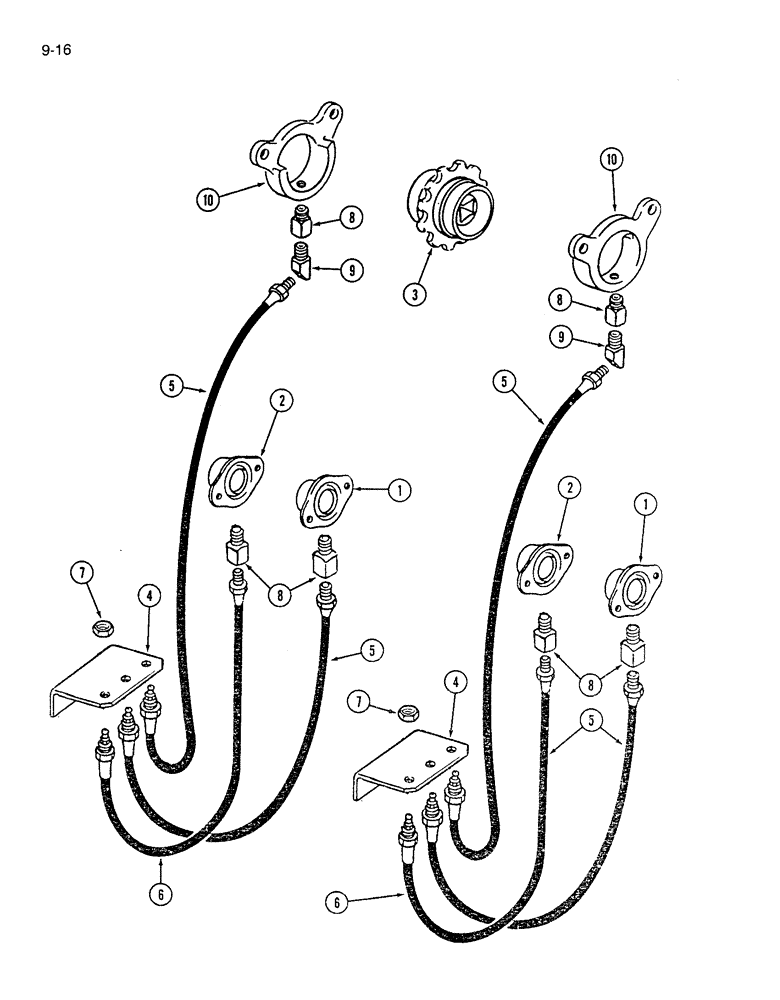

Запчасти Case IH 7200 (9-016) - LUBRICATION BANK (09) - CHASSIS/ATTACHMENTS

1

596943R92

BEARING ASSY,25.45mm ID

BEARING ASSEMBLY - grain drive countershaft

2шт.

2

596943R92

BEARING ASSY,25.45mm ID

BEARING ASSEMBLY - fertilizer drive shaft

2шт.

3

817457C1

SPROCKET

- grain feedshaft drive, 9 tooth

1шт.

4

818182C1

ANGLE

SUPPORT - lubrication hose

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

5

818306C1

HOSE

- lubrication, 28 inch

4шт.

6

818307C1

HOSE

- lubrication, 24-1/2 inch

2шт.

7

F53473

LOCK NUT,1/8-27 NPSM

- lubrication hose

4шт.

8

21450R1

ADAPTER,1/4"-1/8 NPTF

FITTING - lubrication, 1/4 inch

6шт.

9

580256R1

ADAPTER,45 Degree, 1/8"-27

FITTING - lubrication, 45 degree, 1/8 inch

2шт.

10

817458C1

HANGER

- grain feedshaft drive sprocket

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
