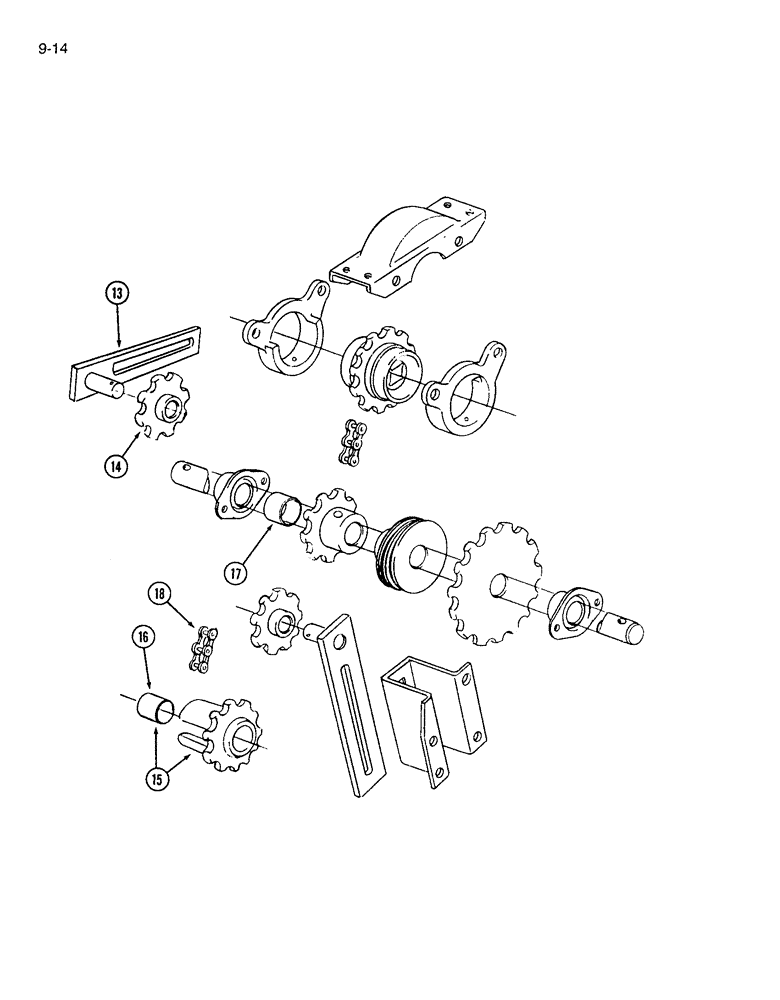

Запчасти Case IH 7200 (9-014) - GRAIN DRIVE COUNTERSHAFT (09) - CHASSIS/ATTACHMENTS

13

816040C2

BRACKET

- grain drive shaft chain tightener (Continued from previous page)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

14

819457C1

SPROCKET

- chain tightener, 6 tooth

1шт.

15

817453C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - grain drive clutch

1шт.

16

298401R1

BUSHING

- clutch sprocket

1шт.

17

243301R1

SPACER,1" Pipe x 11/16"

- grain drive shaft, 1 x 11/16 inch

1шт.

18

CHAIN - grain drive shaft drive (Use 35 links from 10 foot roll 569089R91, and add (1) connecting link 587372R91)

1шт.
