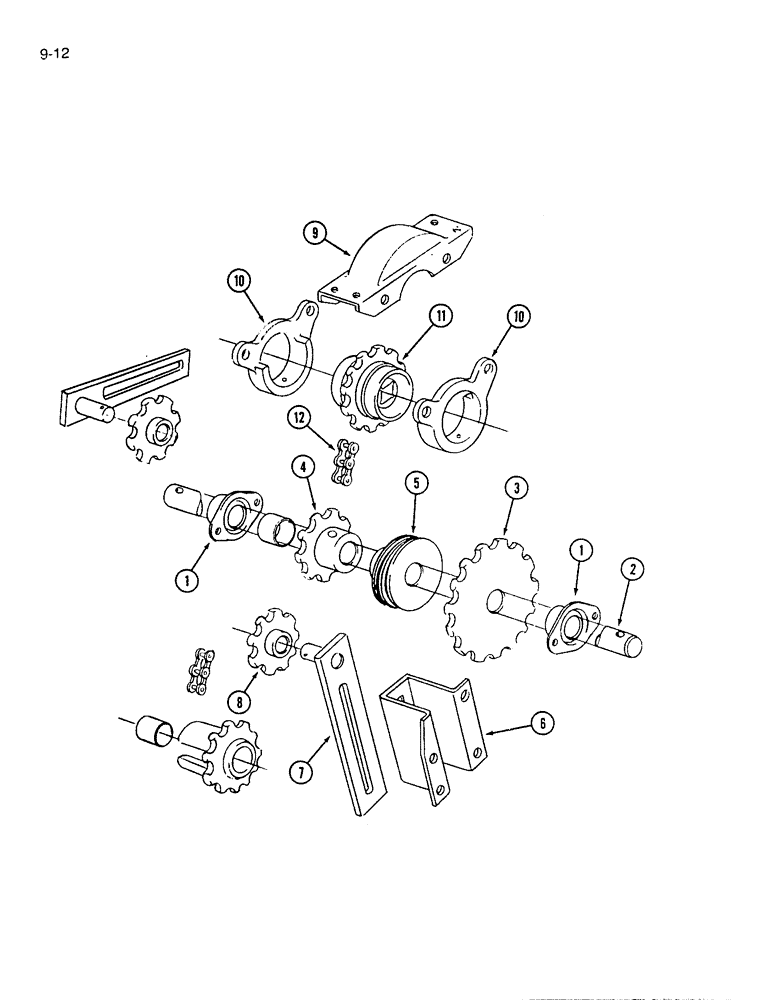

Запчасти Case IH 7200 (9-012) - GRAIN DRIVE COUNTERSHAFT (09) - CHASSIS/ATTACHMENTS

1

596943R92

BEARING ASSY,25.45mm ID

BEARING ASSEMBLY - grain drive shaft

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

817503C1

ROD

- grain drive shaft

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

3

816035C1

SPROCKET ASSY.

SPROCKET - grain countershaft driven, 14 tooth

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

4

816035C1

SPROCKET ASSY.

SPROCKET - grain countershaft driver, 14 tooth (For fast speed)

1шт.

4

816273C1

SPROCKET ASSY.

SPROCKET - grain countershaft driver, 7 tooth (For regular speed)

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

5

818050C1

GEAR

- acreage counter worm

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

6

818143C1

SUPPORT

- grain drive shaft chain tightener bracket

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

7

816040C2

BRACKET

- grain drive tightener

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

8

819457C1

SPROCKET

- chain tightener, 6 tooth

1шт.

9

817459C1

CAP

- grain feedshaft drive sprocket

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

817458C1

HANGER

- grain feedshaft drive sprocket

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

817457C1

SPROCKET

- grain feedshaft drive, 9 tooth

1шт.

12

CHAIN - grain feedshaft drive (Use 25 links from 10 foot roll 569089R91, and add (1) connecting link 587372R91, for fast speed also add (2) offset links 456929R91)

1шт.
