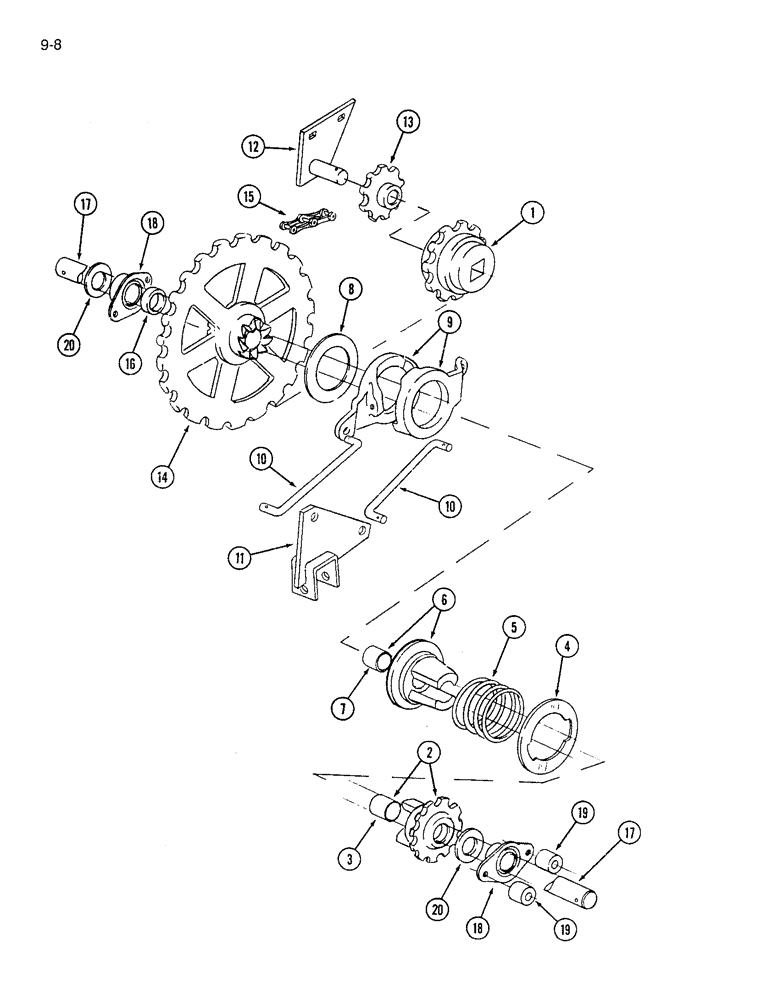

Запчасти Case IH 7200 (9-008) - MAIN DRIVE (09) - CHASSIS/ATTACHMENTS

1

603902R2

SPROCKET ASSY.

SPROCKET - main drive, 10 tooth

1шт.

2

817453C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - grain drive clutch

1шт.

3

298401R1

BUSHING

- clutch sprocket

1шт.

4

817456C1

WASHER

- clutch sprocket

1шт.

5

816026C1

SPRING

- clutch

1шт.

6

817455C91

CLUTCH

ASSEMBLY - driver

1шт.

7

298401R1

BUSHING

- driver clutch

1шт.

8

816029C1

WASHER,60.45mm ID x 86.36mm OD x 1.9mm Thk

- clutch cam

1шт.

9

817594C1

CAM

- throwout

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

1шт.

10

843122C1

ROD

- clutch lift arm

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

11

816032C1

ARM

- clutch lift

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

816014C2

BRACKET

ASSEMBLY - main drive chain idler

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

13

819457C1

SPROCKET

- main drive idler, 6 tooth

1шт.

14

817451C1

SPROCKET ASSY.

SPROCKET - main drive, 25 tooth

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

15

CHAIN - main drive (Use 129 links from 10 foot roll 569089R1, and add (1) connecting link 587372R91 and (2) offset links 456929R91)

1шт.

16

580342R1

SPACER,1" Pipe x 1/2"

- clutch shaft

1шт.

17

817502C1

PIN

- clutch shaft

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

18

596943R92

BEARING ASSY,25.45mm ID

BEARING ASSEMBLY - clutch extension shaft

2шт.

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

818458C1

SPACER

- bearing

2шт.

20

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.
