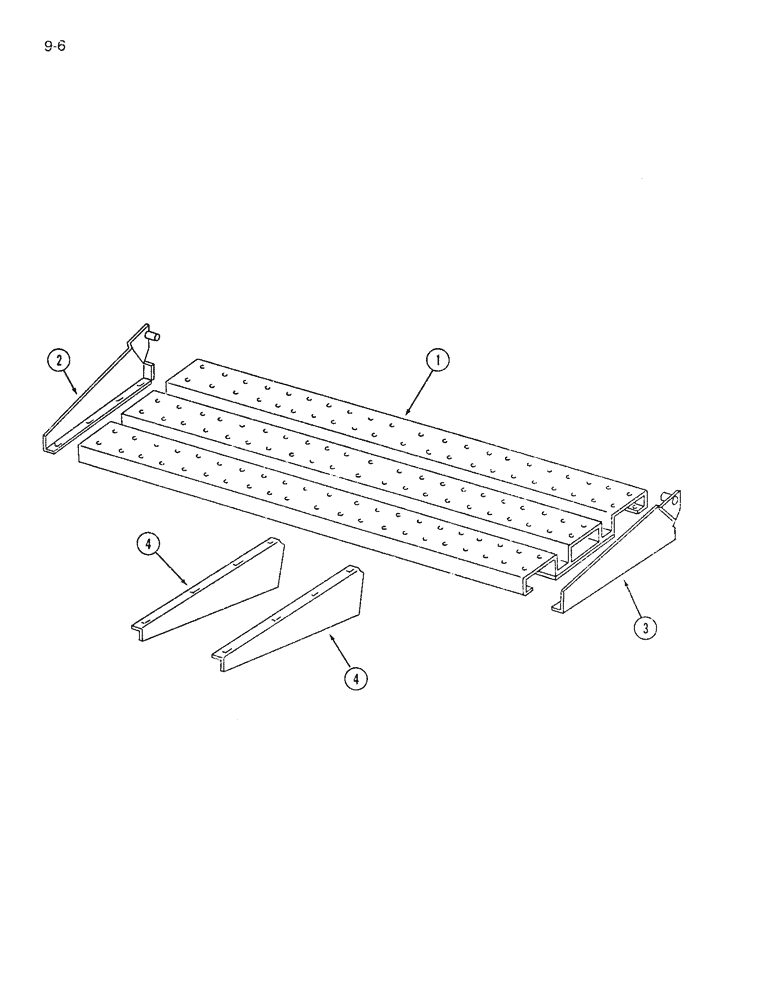

Запчасти Case IH 7200 (9-006) - FOOTBOARD AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

817420C2

FOOT REST

SECTION ASSEMBLY - footboard (Replaces 817471C1)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

16шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

16шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (At slots)

6шт.

2

817541C1

SUPPORT

ASSEMBLY - footboard, outer, left

1шт.

3

817542C1

SUPPORT

ASSEMBLY - footboard, outer, right

1шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

4

817386C1

SUPPORT

- footboard, center

2шт.
