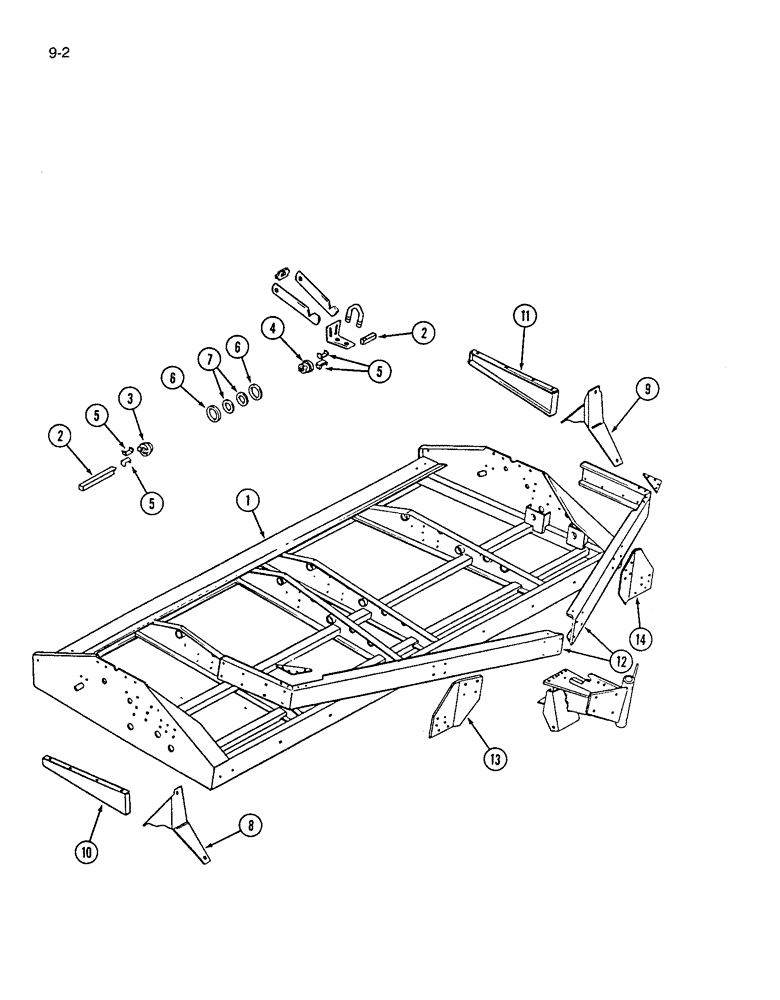

Запчасти Case IH 7200 (9-002) - FRAME AND ROCKSHAFT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

818239C93

FRAME ASSY

FRAME ASSEMBLY - main, 24 x 7 inch

1шт.

1254170C1

DECAL

- caution (See page 9-153)

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

12шт.

2

BAR - rockshaft (Order 603164R1 bar and cut to length of 85-3/8 inch)

6шт.

2

603164R1

ROCKSHAFT

BAR - rockshaft, 94-5/16 inch

1шт.

3

603114R1

TRUNNION

- rockshaft end

6шт.

485-14414

SET SCREW,Sq Hd, 7/16"-14 x 7/8"

SCREW - set, square head, 7/16 NC x 7/8 inch, cup point

6шт.

4

815086C1

TRUNNION

- rockshaft intermediate

12шт.

5

603196R1

CHANNEL

- trunnion retaining

36шт.

6

495-81242

WASHER,1 27/32" x 2 1/2" x .060"

- flat, 1-27/32 x 2-3/4 x 1/16 inch

18шт.

7

495-81216

WASHER,1.41" ID x 2.25" OD x 0.04" Thk

- flat, 1-13/32 x 2-1/4 x 3/8 inch

1шт.

8

818218C1

FILLER

- front, right

1шт.

9

818217C1

FILLER

- front, left

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

10

818227C1

FILLER

- footboard end, right (Not used with multiple hitch)

1шт.

11

818226C1

FILLER

- footboard end, left (Not used with multiple hitch)

1шт.

12

817103C1

CHANNEL

- frame, diagonal, right

1шт.

12

1279388C1

CHANNEL

- frame, diagonal, left

1шт.

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

16шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

12шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

8шт.

425-106

NUT,3/8"-16, Cl 5

18шт.

425-1010

NUT,5/8"-11, G5

8шт.

492-11038

LOCK WASHER,3/8"

18шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

13

817410C1

SUPPORT

- front and diagonal channel, right

1шт.

14

817450C1

SUPPORT

- front and diagonal channel, left

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
