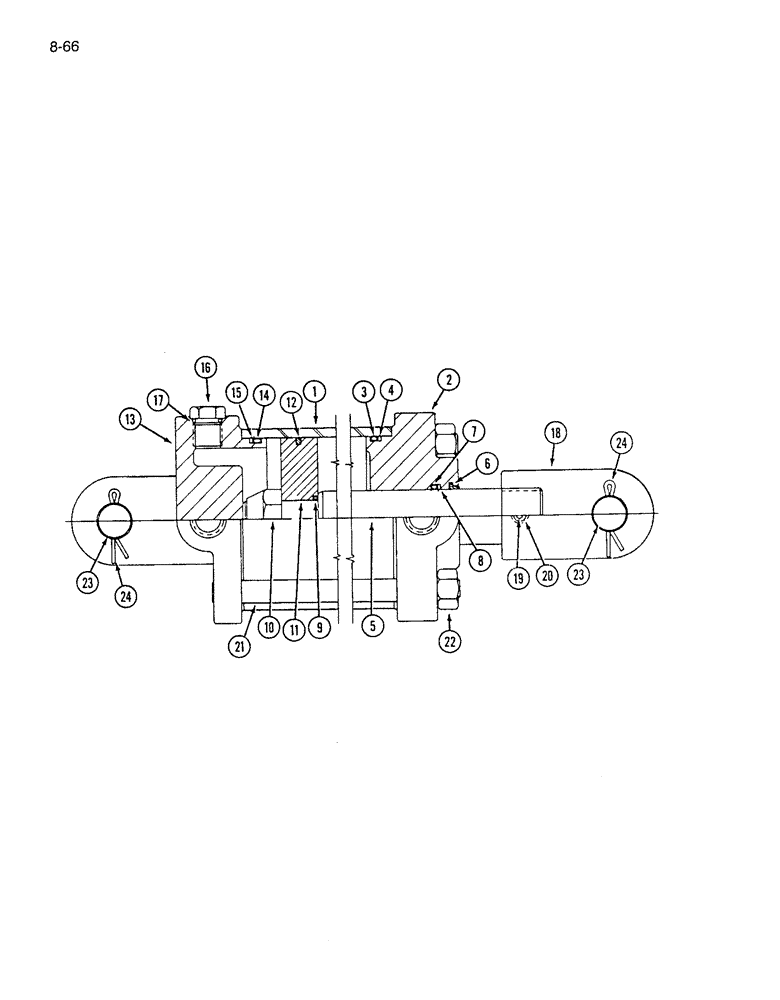

Запчасти Case IH 7200 (8-66) - HYDRAULIC CYLINDER - WITH FRONT AND REAR PORTS, 4-1/2 ID X 8 INCH STROKE - PRINCE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
818146C92
CYLINDER
ASSEMBLY - 4-1/2 ID x 8 inch stroke
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
2
841162C1
GLAND
- cylinder
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - gland, 4-1/8 ID x 4-1/2 inch OD
1шт.
Part of seal kit P/N 841166C1.
1шт.
4
NSS
NOT SOLD SEPARAT
RING - backup, gland O-ring
1шт.
Part of seal kit P/N 841166C1.
1шт.
5
841163C1
ROD
- piston
1шт.
6
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of seal kit P/N 841166C1.
1шт.
7
NSS
NOT SOLD SEPARAT
O-RING - piston rod, 1-1/2 ID x 1-3/4 inch OD
1шт.
Part of seal kit P/N 841166C1.
1шт.
8
NSS
NOT SOLD SEPARAT
RING - backup, piston rod O-ring
1шт.
Part of seal kit P/N 841166C1.
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - piston rod to piston, 1 ID x 1-1/8 inch OD
1шт.
Part of seal kit P/N 841166C1.
1шт.
10
359798C1
LOCK NUT,1"-14, GC
NUT - hex, self-locking, 7/8 inch NF
1шт.
11
841164C1
PISTON
- cylinder
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
Part of seal kit P/N 841166C1.
1шт.
13
841160C1
END
HEAD - cylinder, closed end
1шт.
14
NSS
NOT SOLD SEPARAT
O-RING - cylinder head, 4-1/8 ID x 4-1/2 inch OD
1шт.
Part of seal kit P/N 841166C1.
1шт.
15
NSS
NOT SOLD SEPARAT
RING - backup, cylinder head O-ring
1шт.
Part of seal kit P/N 841166C1.
1шт.
16
9410359
PLUG
- hex, 3/4-16 inch O-ring boss
1шт.
17
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
813406C91
CLEVIS
ASSEMBLY - rod end
1шт.
18
NSS
NOT SOLD SEPARAT
CLEVIS - rod end
1шт.
19
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert
1шт.
20
222518
SET SCREW,Hex Soc, 3/8"-24 x 3/8"
SCREW - set, hex socket headless, 3/8 NF x 3/8 inch
1шт.
841165C91
BOLT,Hex, 5/8" - 18 x 13 3/8"
ROD ASSEMBLY - tie, cylinder
4шт.
21
NSS
NOT SOLD SEPARAT
BOLT - tie
4шт.
22
425-1110
NUT,5/8"-18, G5
4шт.
23
841186C1
PIN
- cylinder head and clevis end
2шт.
24
432-1224
COTTER PIN,3/16" x 1-1/2"
3/16" x 1 1/2"
2шт.
841166C1
SEAL KIT
- seal, Includes: Ref. 3, 4, 6 - 9, 12, 14 and 15
1шт.
Выбрано товаров: 37
